07. kube-apiserver API 认证和鉴权

07. kube-apiserver API 认证和鉴权

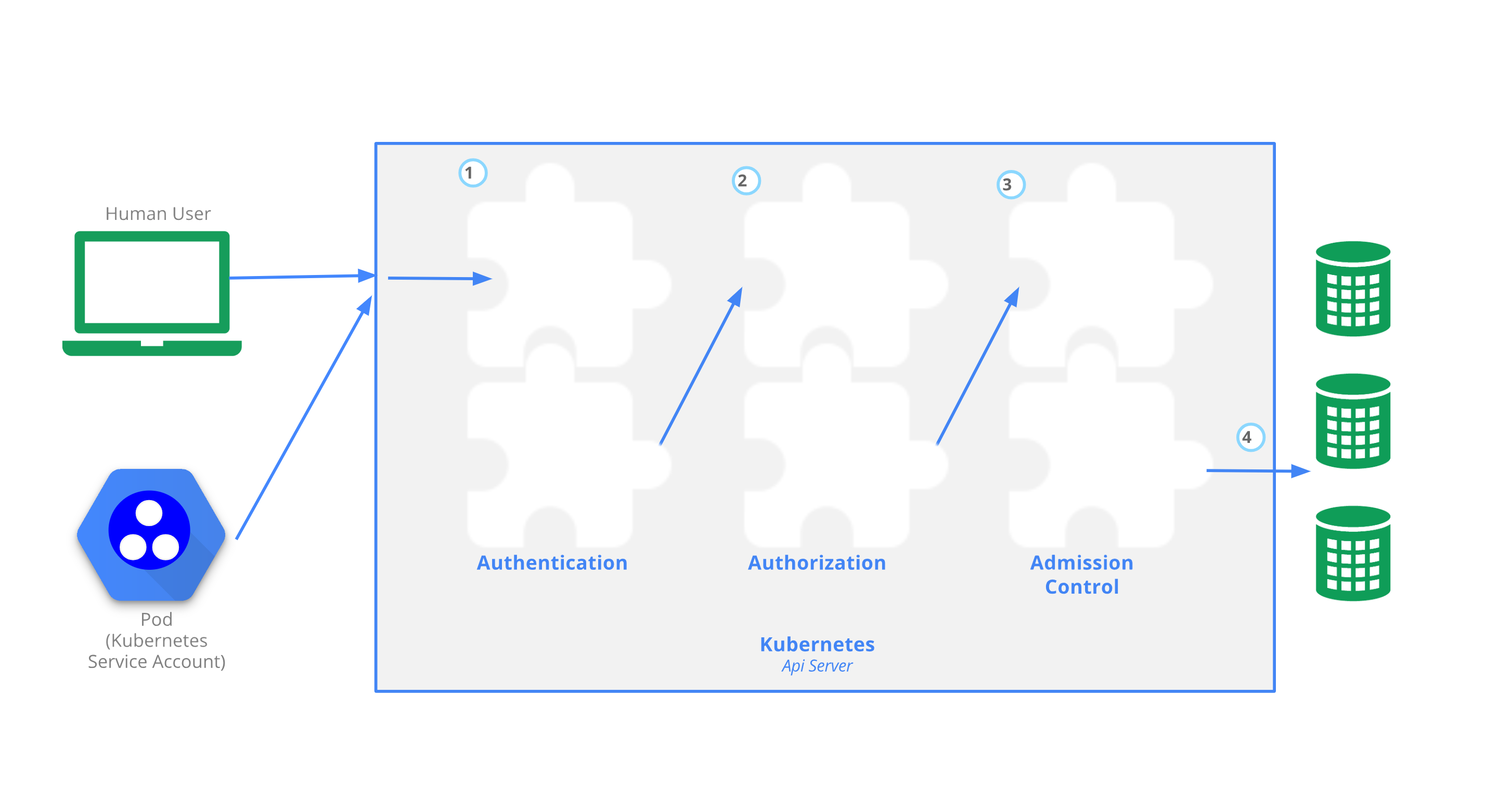

用户使用 kubectl、客户端库或构造 REST 请求来访问 kube-apiserver 的 API 时，会先经过 认证（Authentication）、鉴权（Authorization）、准入控制（Admission Controllers）三个阶段后才进入到第6回的 handler 处理流程中操作资源对象。

Untitled

  • 认证：针对请求的认证，确认是否有访问集群的权限
  • 鉴权：针对资源的授权，确认是否有对资源操作的权限
  • 准入控制：针对请求的资源内容进行校验、修改、拒绝（ Sidecar 注入原理）

本回先看认证和鉴权阶段，如果熟悉 gin 框架的话，其实现原理和 gin 中间件是一样的，本质只是一个个的 handler ，在整个 HandlerChain 中，位于业务逻辑 handler 的前面优先处理。

在第2回讲到，不论是 AggregatorServer 、KubeAPIServer 还是 APIExtensionsServer ，这三个服务都是调用的 NewAPIServerHandler 方法进行 API Server 的 Handler 处理器创建：

// k8s.io/apiserver/pkg/server/handler.go

func NewAPIServerHandler(name string, s runtime.NegotiatedSerializer, handlerChainBuilder HandlerChainBuilderFn, notFoundHandler http.Handler) *APIServerHandler {
	// ...

	// FullHandlerChain 是在 director 基础上增加中间件，得到完整的处理程序链
	// 处理顺序：FullHandlerChain -> Director（选择） -> {GoRestfulContainer,NonGoRestfulMux}
	return &APIServerHandler{
		FullHandlerChain:   handlerChainBuilder(director),
		GoRestfulContainer: gorestfulContainer,
		NonGoRestfulMux:    nonGoRestfulMux,
		Director:           director,
	}
}

其中 FullHandlerChain 是通过参数传递的 handlerChainBuilder 方法在 director 选择器的基础上增加一系列的中间件（包括认证和鉴权 handler ），从而得到的完整的程序处理链，看到 handlerChainBuilder 的定义：

// k8s.io/apiserver/pkg/server/config.go

func (c completedConfig) New(name string, delegationTarget DelegationTarget) (*GenericAPIServer, error) {
	// ...

	handlerChainBuilder := func(handler http.Handler) http.Handler {
		// 调用的 completedConfig.BuildHandlerChainFunc 方法
		return c.BuildHandlerChainFunc(handler, c.Config)
	}

	// ...
	// 创建 API Server 的 Handler 处理器，传入 handlerChainBuilder
	apiServerHandler := NewAPIServerHandler(name, c.Serializer, handlerChainBuilder, delegationTarget.UnprotectedHandler())

	// ...
}

BuildHandlerChainFunc 方法很容易找到，不啰嗦了，就在创建服务调用链中的创建配置的地方：

// cmd/kube-apiserver/app/server.go
func CreateServerChain(completedOptions completedServerRunOptions) (*aggregatorapiserver.APIAggregator, error) {
	// 为 KubeAPIServer 创建配置
	kubeAPIServerConfig, serviceResolver, pluginInitializer, err := CreateKubeAPIServerConfig(completedOptions)
	if err != nil {
		return nil, err
	}

	// ...
}

// cmd/kube-apiserver/app/server.go
func CreateKubeAPIServerConfig(s completedServerRunOptions) (
	*controlplane.Config,
	aggregatorapiserver.ServiceResolver,
	[]admission.PluginInitializer,
	error,
) {
	// ...
	// 跳到 buildGenericConfig
	genericConfig, versionedInformers, serviceResolver, pluginInitializers, admissionPostStartHook, storageFactory, err := buildGenericConfig(s.ServerRunOptions, proxyTransport)
	// ...
}

// cmd/kube-apiserver/app/server.go
func buildGenericConfig(
	s *options.ServerRunOptions,
	proxyTransport *http.Transport,
) (
	genericConfig *genericapiserver.Config,
	versionedInformers clientgoinformers.SharedInformerFactory,
	serviceResolver aggregatorapiserver.ServiceResolver,
	pluginInitializers []admission.PluginInitializer,
	admissionPostStartHook genericapiserver.PostStartHookFunc,
	storageFactory *serverstorage.DefaultStorageFactory,
	lastErr error,
) {
	// 初始化配置
	genericConfig = genericapiserver.NewConfig(legacyscheme.Codecs)
	// ...
}

// k8s.io/apiserver/pkg/server/config.go
func NewConfig(codecs serializer.CodecFactory) *Config {
	// ...

	return &Config{
		// BuildHandlerChainFunc 使用的是 DefaultBuildHandlerChain
		BuildHandlerChainFunc:          DefaultBuildHandlerChain,
		// ...
	}
}

所以 handlerChainBuilder 方法的实现就是 DefaultBuildHandlerChain 方法：

// k8s.io/apiserver/pkg/server/config.go

// 注册各种中间件，这里中间件的实际执行顺序和声明顺序是相反的，先认证，再鉴权
func DefaultBuildHandlerChain(apiHandler http.Handler, c *Config) http.Handler {

	// 鉴权中间件，传入 c.Authorization.Authorizer 鉴权器
	handler = genericapifilters.WithAuthorization(handler, c.Authorization.Authorizer, c.Serializer)

	// 认证中间件，传入 c.Authentication.Authenticator 认证器
	handler = genericapifilters.WithAuthentication(handler, c.Authentication.Authenticator, failedHandler, c.Authentication.APIAudiences, c.Authentication.RequestHeaderConfig)

	// 跨域中间件
	handler = genericfilters.WithCORS(handler, c.CorsAllowedOriginList, nil, nil, nil, "true")
	// Panic Recovery 中间件
	handler = genericfilters.WithPanicRecovery(handler, c.RequestInfoResolver)

	// ... 等等还有很多的中间件

	return handler
}

WithAuthorization 和 WithAuthentication 方法很简单，就是普通的中间件处理逻辑的写法，在其中调用认证器进行认证和鉴权器进行鉴权：

// k8s.io/apiserver/pkg/endpoints/filters/authorization.go
func WithAuthorization(handler http.Handler, a authorizer.Authorizer, s runtime.NegotiatedSerializer) http.Handler {
	if a == nil {
		klog.Warning("Authorization is disabled")
		return handler
	}
	return http.HandlerFunc(func(w http.ResponseWriter, req *http.Request) {
		ctx := req.Context()

		// 调用鉴权器进行鉴权操作
		authorized, reason, err := a.Authorize(ctx, attributes)
		// 返回 DecisionAllow 代表鉴权通过，继续前往下一个 handler
		if authorized == authorizer.DecisionAllow {
			audit.AddAuditAnnotations(ctx,
				decisionAnnotationKey, decisionAllow,
				reasonAnnotationKey, reason)
			handler.ServeHTTP(w, req)
			return
		}
		if err != nil {
			audit.AddAuditAnnotation(ctx, reasonAnnotationKey, reasonError)
			responsewriters.InternalError(w, req, err)
			return
		}
		// 鉴权失败，返回 403
		klog.V(4).InfoS("Forbidden", "URI", req.RequestURI, "reason", reason)
		audit.AddAuditAnnotations(ctx,
			decisionAnnotationKey, decisionForbid,
			reasonAnnotationKey, reason)
		responsewriters.Forbidden(ctx, attributes, w, req, reason, s)
	})
}

// k8s.io/apiserver/pkg/endpoints/filters/authentication.go
func WithAuthentication(handler http.Handler, auth authenticator.Request, failed http.Handler, apiAuds authenticator.Audiences, requestHeaderConfig *authenticatorfactory.RequestHeaderConfig) http.Handler {
	return withAuthentication(handler, auth, failed, apiAuds, requestHeaderConfig, recordAuthMetrics)
}

func withAuthentication(handler http.Handler, auth authenticator.Request, failed http.Handler, apiAuds authenticator.Audiences, requestHeaderConfig *authenticatorfactory.RequestHeaderConfig, metrics recordMetrics) http.Handler {
	if auth == nil {
		klog.Warning("Authentication is disabled")
		return handler
	}
	standardRequestHeaderConfig := &authenticatorfactory.RequestHeaderConfig{
		UsernameHeaders:     headerrequest.StaticStringSlice{"X-Remote-User"},
		GroupHeaders:        headerrequest.StaticStringSlice{"X-Remote-Group"},
		ExtraHeaderPrefixes: headerrequest.StaticStringSlice{"X-Remote-Extra-"},
	}
	return http.HandlerFunc(func(w http.ResponseWriter, req *http.Request) {
		authenticationStart := time.Now()

		if len(apiAuds) > 0 {
			req = req.WithContext(authenticator.WithAudiences(req.Context(), apiAuds))
		}
		// 调用认证器进行认证操作
		resp, ok, err := auth.AuthenticateRequest(req)
		authenticationFinish := time.Now()
		defer func() {
			metrics(req.Context(), resp, ok, err, apiAuds, authenticationStart, authenticationFinish)
		}()
		// 认证失败
		if err != nil || !ok {
			if err != nil {
				klog.ErrorS(err, "Unable to authenticate the request")
			}
			failed.ServeHTTP(w, req)
			return
		}

		if !audiencesAreAcceptable(apiAuds, resp.Audiences) {
			err = fmt.Errorf("unable to match the audience: %v , accepted: %v", resp.Audiences, apiAuds)
			klog.Error(err)
			failed.ServeHTTP(w, req)
			return
		}

		// 认证成功，前往下一个 handler
		// authorization header is not required anymore in case of a successful authentication.
		req.Header.Del("Authorization")

		// delete standard front proxy headers
		headerrequest.ClearAuthenticationHeaders(
			req.Header,
			standardRequestHeaderConfig.UsernameHeaders,
			standardRequestHeaderConfig.GroupHeaders,
			standardRequestHeaderConfig.ExtraHeaderPrefixes,
		)

		// also delete any custom front proxy headers
		if requestHeaderConfig != nil {
			headerrequest.ClearAuthenticationHeaders(
				req.Header,
				requestHeaderConfig.UsernameHeaders,
				requestHeaderConfig.GroupHeaders,
				requestHeaderConfig.ExtraHeaderPrefixes,
			)
		}

		req = req.WithContext(genericapirequest.WithUser(req.Context(), resp.User))
		handler.ServeHTTP(w, req)
	})
}

直接看其核心调用的认证器和鉴权器，回到 buildGenericConfig 方法：

// cmd/kube-apiserver/app/server.go

func buildGenericConfig(
	s *options.ServerRunOptions,
	proxyTransport *http.Transport,
) (
	genericConfig *genericapiserver.Config,
	versionedInformers clientgoinformers.SharedInformerFactory,
	serviceResolver aggregatorapiserver.ServiceResolver,
	pluginInitializers []admission.PluginInitializer,
	admissionPostStartHook genericapiserver.PostStartHookFunc,
	storageFactory *serverstorage.DefaultStorageFactory,
	lastErr error,
) {
	// 初始化配置
	genericConfig = genericapiserver.NewConfig(legacyscheme.Codecs)

	// ...

	// 认证器的初始化
	if lastErr = s.Authentication.ApplyTo(&genericConfig.Authentication, genericConfig.SecureServing, genericConfig.EgressSelector, genericConfig.OpenAPIConfig, genericConfig.OpenAPIV3Config, clientgoExternalClient, versionedInformers); lastErr != nil {
		return
	}

	// 鉴权器的初始化
	genericConfig.Authorization.Authorizer, genericConfig.RuleResolver, err = BuildAuthorizer(s, genericConfig.EgressSelector, versionedInformers)
	if err != nil {
		lastErr = fmt.Errorf("invalid authorization config: %v", err)
		return
	}
	if !sets.NewString(s.Authorization.Modes...).Has(modes.ModeRBAC) {
		genericConfig.DisabledPostStartHooks.Insert(rbacrest.PostStartHookName)
	}

	// ...

	return
}

先看认证器的初始化：

// pkg/kubeapiserver/options/authentication.go
func (o *BuiltInAuthenticationOptions) ApplyTo(authInfo *genericapiserver.AuthenticationInfo, secureServing *genericapiserver.SecureServingInfo, egressSelector *egressselector.EgressSelector, openAPIConfig *openapicommon.Config, openAPIV3Config *openapicommon.Config, extclient kubernetes.Interface, versionedInformer informers.SharedInformerFactory) error {
	// ...

	// 认证器的初始化
	authInfo.Authenticator, openAPIConfig.SecurityDefinitions, err = authenticatorConfig.New()

	// ...
	return nil
}

// pkg/kubeapiserver/authenticator/config.go
func (config Config) New() (authenticator.Request, *spec.SecurityDefinitions, error) {
	// 用来存放一系列的认证器
	var authenticators []authenticator.Request
	// 用来存放 Token 相关的认证器，最后会组合成一个 Token 认证器一起放入 authenticators
	var tokenAuthenticators []authenticator.Token
	securityDefinitions := spec.SecurityDefinitions{}

	// RequestHeader 认证器
	if config.RequestHeaderConfig != nil {
		requestHeaderAuthenticator := headerrequest.NewDynamicVerifyOptionsSecure(
			config.RequestHeaderConfig.CAContentProvider.VerifyOptions,
			config.RequestHeaderConfig.AllowedClientNames,
			config.RequestHeaderConfig.UsernameHeaders,
			config.RequestHeaderConfig.GroupHeaders,
			config.RequestHeaderConfig.ExtraHeaderPrefixes,
		)
		authenticators = append(authenticators, authenticator.WrapAudienceAgnosticRequest(config.APIAudiences, requestHeaderAuthenticator))
	}

	// ClientCA 认证器
	if config.ClientCAContentProvider != nil {
		certAuth := x509.NewDynamic(config.ClientCAContentProvider.VerifyOptions, x509.CommonNameUserConversion)
		authenticators = append(authenticators, certAuth)
	}

	// TokenAuth 认证器
	if len(config.TokenAuthFile) > 0 {
		tokenAuth, err := newAuthenticatorFromTokenFile(config.TokenAuthFile)
		if err != nil {
			return nil, nil, err
		}
		tokenAuthenticators = append(tokenAuthenticators, authenticator.WrapAudienceAgnosticToken(config.APIAudiences, tokenAuth))
	}
	// ServiceAccountAuth 认证器
	if len(config.ServiceAccountKeyFiles) > 0 {
		serviceAccountAuth, err := newLegacyServiceAccountAuthenticator(config.ServiceAccountKeyFiles, config.ServiceAccountLookup, config.APIAudiences, config.ServiceAccountTokenGetter, config.SecretsWriter)
		if err != nil {
			return nil, nil, err
		}
		tokenAuthenticators = append(tokenAuthenticators, serviceAccountAuth)
	}
	if len(config.ServiceAccountIssuers) > 0 {
		serviceAccountAuth, err := newServiceAccountAuthenticator(config.ServiceAccountIssuers, config.ServiceAccountKeyFiles, config.APIAudiences, config.ServiceAccountTokenGetter)
		if err != nil {
			return nil, nil, err
		}
		tokenAuthenticators = append(tokenAuthenticators, serviceAccountAuth)
	}
	// BootstrapToken 认证器
	if config.BootstrapToken {
		if config.BootstrapTokenAuthenticator != nil {
			// TODO: This can sometimes be nil because of
			tokenAuthenticators = append(tokenAuthenticators, authenticator.WrapAudienceAgnosticToken(config.APIAudiences, config.BootstrapTokenAuthenticator))
		}
	}
	// OIDC 认证器
	if len(config.OIDCIssuerURL) > 0 && len(config.OIDCClientID) > 0 {
		// TODO(enj): wire up the Notifier and ControllerRunner bits when OIDC supports CA reload
		var oidcCAContent oidc.CAContentProvider
		if len(config.OIDCCAFile) != 0 {
			var oidcCAErr error
			oidcCAContent, oidcCAErr = staticCAContentProviderFromFile("oidc-authenticator", config.OIDCCAFile)
			if oidcCAErr != nil {
				return nil, nil, oidcCAErr
			}
		}

		oidcAuth, err := newAuthenticatorFromOIDCIssuerURL(oidc.Options{
			IssuerURL:            config.OIDCIssuerURL,
			ClientID:             config.OIDCClientID,
			CAContentProvider:    oidcCAContent,
			UsernameClaim:        config.OIDCUsernameClaim,
			UsernamePrefix:       config.OIDCUsernamePrefix,
			GroupsClaim:          config.OIDCGroupsClaim,
			GroupsPrefix:         config.OIDCGroupsPrefix,
			SupportedSigningAlgs: config.OIDCSigningAlgs,
			RequiredClaims:       config.OIDCRequiredClaims,
		})
		if err != nil {
			return nil, nil, err
		}
		tokenAuthenticators = append(tokenAuthenticators, authenticator.WrapAudienceAgnosticToken(config.APIAudiences, oidcAuth))
	}
	// WebhookTokenAuth 认证器
	if len(config.WebhookTokenAuthnConfigFile) > 0 {
		webhookTokenAuth, err := newWebhookTokenAuthenticator(config)
		if err != nil {
			return nil, nil, err
		}

		tokenAuthenticators = append(tokenAuthenticators, webhookTokenAuth)
	}

	if len(tokenAuthenticators) > 0 {
		// 将 Token 相关的认证器组合成一个 BearerToken 认证器
		tokenAuth := tokenunion.New(tokenAuthenticators...)
		// Optionally cache authentication results
		if config.TokenSuccessCacheTTL > 0 || config.TokenFailureCacheTTL > 0 {
			tokenAuth = tokencache.New(tokenAuth, true, config.TokenSuccessCacheTTL, config.TokenFailureCacheTTL)
		}
		authenticators = append(authenticators, bearertoken.New(tokenAuth), websocket.NewProtocolAuthenticator(tokenAuth))
		securityDefinitions["BearerToken"] = &spec.SecurityScheme{
			SecuritySchemeProps: spec.SecuritySchemeProps{
				Type:        "apiKey",
				Name:        "authorization",
				In:          "header",
				Description: "Bearer Token authentication",
			},
		}
	}

	if len(authenticators) == 0 {
		if config.Anonymous {
			// Anonymous 认证器，即匿名认证
			return anonymous.NewAuthenticator(), &securityDefinitions, nil
		}
		return nil, &securityDefinitions, nil
	}

	// 将上诉所有认证器组合成一个认证器
	authenticator := union.New(authenticators...)

	authenticator = group.NewAuthenticatedGroupAdder(authenticator)

	if config.Anonymous {
		// If the authenticator chain returns an error, return an error (don't consider a bad bearer token
		// or invalid username/password combination anonymous).
		authenticator = union.NewFailOnError(authenticator, anonymous.NewAuthenticator())
	}

	return authenticator, &securityDefinitions, nil
}

kube-apiserver 会注册一系列的认证器，包括 RequestHeader 、ClientCA、BearerToken（TokenAuth、ServiceAccountAuth、BootstrapToken、OIDC、WebhookTokenAuth），认证器会实现 authenticator.Request 接口，其中的 Token 认证器则实现 authenticator.Token 接口：

// k8s.io/apiserver/pkg/authentication/authenticator/interfaces.go

// Token 认证器
type Token interface {
	AuthenticateToken(ctx context.Context, token string) (*Response, bool, error)
}

// 认证器
type Request interface {
	AuthenticateRequest(req *http.Request) (*Response, bool, error)
}

所有认证器初始化完成后，使用 union.New 方法组合成一个 unionAuth 认证器，只要请求 API 时满足组合中的任何一个认证器，则认证成功，实现方法很简单：

// k8s.io/apiserver/pkg/authentication/request/union/union.go

type unionAuthRequestHandler struct {
	Handlers []authenticator.Request
	FailOnError bool
}

func New(authRequestHandlers ...authenticator.Request) authenticator.Request {
	if len(authRequestHandlers) == 1 {
		return authRequestHandlers[0]
	}
	return &unionAuthRequestHandler{Handlers: authRequestHandlers, FailOnError: false}
}

func NewFailOnError(authRequestHandlers ...authenticator.Request) authenticator.Request {
	if len(authRequestHandlers) == 1 {
		return authRequestHandlers[0]
	}
	return &unionAuthRequestHandler{Handlers: authRequestHandlers, FailOnError: true}
}

// 认证方法
func (authHandler *unionAuthRequestHandler) AuthenticateRequest(req *http.Request) (*authenticator.Response, bool, error) {
	var errlist []error
	// 遍历所有的认证器
	for _, currAuthRequestHandler := range authHandler.Handlers {
		// 认证
		resp, ok, err := currAuthRequestHandler.AuthenticateRequest(req)
		if err != nil {
			if authHandler.FailOnError {
				// 一旦发生错误立即返回
				return resp, ok, err
			}
			// 继续尝试使用下一个认证器进行认证
			errlist = append(errlist, err)
			continue
		}

		// 认证成功
		if ok {
			return resp, ok, err
		}
	}

	// 所有认证器都认证不通过，返回认证失败
	return nil, false, utilerrors.NewAggregate(errlist)
}

在组合成一个认证器后，还会再调用 group.NewAuthenticatedGroupAdder 方法，在 unionAuth 认证器外面再包装一个 AuthenticatedGroup 认证器：

// AuthenticatedGroupAdder adds system:authenticated group when appropriate
type AuthenticatedGroupAdder struct {
	// Authenticator is delegated to make the authentication decision
	Authenticator authenticator.Request
}

// NewAuthenticatedGroupAdder wraps a request authenticator, and adds the system:authenticated group when appropriate.
// Authentication must succeed, the user must not be system:anonymous, the groups system:authenticated or system:unauthenticated must
// not be present
func NewAuthenticatedGroupAdder(auth authenticator.Request) authenticator.Request {
	return &AuthenticatedGroupAdder{auth}
}

func (g *AuthenticatedGroupAdder) AuthenticateRequest(req *http.Request) (*authenticator.Response, bool, error) {
	// 实际调用的就是 unionAuth 认证器的认证方法
	r, ok, err := g.Authenticator.AuthenticateRequest(req)
	if err != nil || !ok {
		// unionAuth 认证器认证失败
		return nil, ok, err
	}

	// unionAuth 认证器认证成功

	// 如果用户是 system:anonymous ，则直接返回
	if r.User.GetName() == user.Anonymous {
		return r, true, nil
	}
	for _, group := range r.User.GetGroups() {
		// 如果用户组属于 system:authenticated 或 system:unauthenticated ，则直接返回
		if group == user.AllAuthenticated || group == user.AllUnauthenticated {
			return r, true, nil
		}
	}

	// 否则更新用户信息，将用户加入 system:authenticated 组
	newGroups := make([]string, 0, len(r.User.GetGroups())+1)
	newGroups = append(newGroups, r.User.GetGroups()...)
	newGroups = append(newGroups, user.AllAuthenticated)

	ret := *r // shallow copy
	ret.User = &user.DefaultInfo{
		Name:   r.User.GetName(),
		UID:    r.User.GetUID(),
		Groups: newGroups,
		Extra:  r.User.GetExtra(),
	}
	return &ret, true, nil
}

到这，认证器的流程就捋清了，至于组合中的一系列认证器的内部处理细节不是很复杂，自己去看就行。

接着看鉴权器的初始化，来到 BuildAuthorizer 方法：

// cmd/kube-apiserver/app/server.go

func BuildAuthorizer(s *options.ServerRunOptions, EgressSelector *egressselector.EgressSelector, versionedInformers clientgoinformers.SharedInformerFactory) (authorizer.Authorizer, authorizer.RuleResolver, error) {
	// 鉴权器的配置，s 是 kube-apiserver 的启动参数选项
	authorizationConfig := s.Authorization.ToAuthorizationConfig(versionedInformers)

	if EgressSelector != nil {
		egressDialer, err := EgressSelector.Lookup(egressselector.ControlPlane.AsNetworkContext())
		if err != nil {
			return nil, nil, err
		}
		authorizationConfig.CustomDial = egressDialer
	}

	// 初始化鉴权器
	return authorizationConfig.New()
}

//pkg/kubeapiserver/options/authorization.go

func (o *BuiltInAuthorizationOptions) ToAuthorizationConfig(versionedInformerFactory versionedinformers.SharedInformerFactory) authorizer.Config {
	return authorizer.Config{
		// 鉴权模式
		AuthorizationModes:          o.Modes,
		PolicyFile:                  o.PolicyFile,
		WebhookConfigFile:           o.WebhookConfigFile,
		WebhookVersion:              o.WebhookVersion,
		WebhookCacheAuthorizedTTL:   o.WebhookCacheAuthorizedTTL,
		WebhookCacheUnauthorizedTTL: o.WebhookCacheUnauthorizedTTL,
		VersionedInformerFactory:    versionedInformerFactory,
		WebhookRetryBackoff:         o.WebhookRetryBackoff,
	}
}

默认情况下，鉴权器的配置是在 kube-apiserver 启动前，即第1回的初始化默认启动参数时的 NewServerRunOptions 方法设置的：

// cmd/kube-apiserver/app/options/options.go
func NewServerRunOptions() *ServerRunOptions {
	s := ServerRunOptions{
		// 准入控制器的配置，略过
		Admission:               kubeoptions.NewAdmissionOptions(),
		// 认证器的配置，略过
		Authentication:          kubeoptions.NewBuiltInAuthenticationOptions().WithAll(),
		// 鉴权器的配置
		Authorization:           kubeoptions.NewBuiltInAuthorizationOptions(),
		// ...
	}
	// ...
	return &s
}

// pkg/kubeapiserver/options/authorization.go
func NewBuiltInAuthorizationOptions() *BuiltInAuthorizationOptions {
	return &BuiltInAuthorizationOptions{
		// 默认的鉴权模式是 AlwaysAllow
		Modes:                       []string{authzmodes.ModeAlwaysAllow},
		WebhookVersion:              "v1beta1",
		WebhookCacheAuthorizedTTL:   5 * time.Minute,
		WebhookCacheUnauthorizedTTL: 30 * time.Second,
		WebhookRetryBackoff:         genericoptions.DefaultAuthWebhookRetryBackoff(),
	}
}

func (o *BuiltInAuthorizationOptions) AddFlags(fs *pflag.FlagSet) {
	// 可以通过 authorization-mode 启动参数来配置鉴权模式
	fs.StringSliceVar(&o.Modes, "authorization-mode", o.Modes, ""+
		"Ordered list of plug-ins to do authorization on secure port. Comma-delimited list of: "+
		strings.Join(authzmodes.AuthorizationModeChoices, ",")+".")
	// ...
}

看完了鉴权器配置，继续看其初始化 authorizationConfig.New() 方法：

// pkg/kubeapiserver/authorizer/config.go

func (config Config) New() (authorizer.Authorizer, authorizer.RuleResolver, error) {
	if len(config.AuthorizationModes) == 0 {
		return nil, nil, fmt.Errorf("at least one authorization mode must be passed")
	}

	var (
		// 用来存放一系列的鉴权器
		authorizers   []authorizer.Authorizer
		// 用来存放一系列的规则解析器
		ruleResolvers []authorizer.RuleResolver
	)

	// 很简单的一个 superuserAuthorizer 鉴权器，给 system:masters 用户组放行
	superuserAuthorizer := authorizerfactory.NewPrivilegedGroups(user.SystemPrivilegedGroup)
	authorizers = append(authorizers, superuserAuthorizer)

	// 遍历所有支持的鉴权模式
	for _, authorizationMode := range config.AuthorizationModes {
		// Keep cases in sync with constant list in k8s.io/kubernetes/pkg/kubeapiserver/authorizer/modes/modes.go.
		switch authorizationMode {
		// Node 模式
		case modes.ModeNode:
			node.RegisterMetrics()
			graph := node.NewGraph()
			node.AddGraphEventHandlers(
				graph,
				config.VersionedInformerFactory.Core().V1().Nodes(),
				config.VersionedInformerFactory.Core().V1().Pods(),
				config.VersionedInformerFactory.Core().V1().PersistentVolumes(),
				config.VersionedInformerFactory.Storage().V1().VolumeAttachments(),
			)
			nodeAuthorizer := node.NewAuthorizer(graph, nodeidentifier.NewDefaultNodeIdentifier(), bootstrappolicy.NodeRules())
			authorizers = append(authorizers, nodeAuthorizer)
			ruleResolvers = append(ruleResolvers, nodeAuthorizer)
		// AlwaysAllow 模式，也是默认的模式
		case modes.ModeAlwaysAllow:
			alwaysAllowAuthorizer := authorizerfactory.NewAlwaysAllowAuthorizer()
			authorizers = append(authorizers, alwaysAllowAuthorizer)
			ruleResolvers = append(ruleResolvers, alwaysAllowAuthorizer)
		// AlwaysDeny 模式
		case modes.ModeAlwaysDeny:
			alwaysDenyAuthorizer := authorizerfactory.NewAlwaysDenyAuthorizer()
			authorizers = append(authorizers, alwaysDenyAuthorizer)
			ruleResolvers = append(ruleResolvers, alwaysDenyAuthorizer)
		// ABAC 模式
		case modes.ModeABAC:
			abacAuthorizer, err := abac.NewFromFile(config.PolicyFile)
			if err != nil {
				return nil, nil, err
			}
			authorizers = append(authorizers, abacAuthorizer)
			ruleResolvers = append(ruleResolvers, abacAuthorizer)
		// Webhook 模式
		case modes.ModeWebhook:
			if config.WebhookRetryBackoff == nil {
				return nil, nil, errors.New("retry backoff parameters for authorization webhook has not been specified")
			}
			clientConfig, err := webhookutil.LoadKubeconfig(config.WebhookConfigFile, config.CustomDial)
			if err != nil {
				return nil, nil, err
			}
			webhookAuthorizer, err := webhook.New(clientConfig,
				config.WebhookVersion,
				config.WebhookCacheAuthorizedTTL,
				config.WebhookCacheUnauthorizedTTL,
				*config.WebhookRetryBackoff,
			)
			if err != nil {
				return nil, nil, err
			}
			authorizers = append(authorizers, webhookAuthorizer)
			ruleResolvers = append(ruleResolvers, webhookAuthorizer)
		// RBAC 模式
		case modes.ModeRBAC:
			rbacAuthorizer := rbac.New(
				&rbac.RoleGetter{Lister: config.VersionedInformerFactory.Rbac().V1().Roles().Lister()},
				&rbac.RoleBindingLister{Lister: config.VersionedInformerFactory.Rbac().V1().RoleBindings().Lister()},
				&rbac.ClusterRoleGetter{Lister: config.VersionedInformerFactory.Rbac().V1().ClusterRoles().Lister()},
				&rbac.ClusterRoleBindingLister{Lister: config.VersionedInformerFactory.Rbac().V1().ClusterRoleBindings().Lister()},
			)
			authorizers = append(authorizers, rbacAuthorizer)
			ruleResolvers = append(ruleResolvers, rbacAuthorizer)
		default:
			return nil, nil, fmt.Errorf("unknown authorization mode %s specified", authorizationMode)
		}
	}

	// 同样地，最后会将所有鉴权器、规则解析器组合成一个，组合方法类似认证器，不再展开
	return union.New(authorizers...), union.NewRuleResolvers(ruleResolvers...), nil
}

大致流程和认证器一样，鉴权器会实现一个 authorizer.Authorizer 接口，而规则解析器则实现 authorizer.RuleResolver 接口：

// k8s.io/apiserver/pkg/authorization/authorizer/interfaces.go

// 鉴权器
type Authorizer interface {
	Authorize(ctx context.Context, a Attributes) (authorized Decision, reason string, err error)
}

// 规则解析器
type RuleResolver interface {
	RulesFor(user user.Info, namespace string) ([]ResourceRuleInfo, []NonResourceRuleInfo, bool, error)
}

鉴权器默认仅支持 AlwaysAllow 模式，但可以使用 --authorization-mode 启动参数来扩展支持 AlwaysDeny 、ABAC 、Webhook 、RBAC 、Node 模式，初始化时会将所有支持的模式添加到鉴权器列表中，最后使用 union.New 方法合并成一个鉴权器。

以默认的 AlwaysAllow 模式为例，其实现方法：

// k8s.io/apiserver/pkg/authorization/authorizerfactory/builtin.go

type alwaysAllowAuthorizer struct{}

// 鉴权方法
func (alwaysAllowAuthorizer) Authorize(ctx context.Context, a authorizer.Attributes) (authorized authorizer.Decision, reason string, err error) {
	// 直接返回通过
	return authorizer.DecisionAllow, "", nil
}

// 鉴权规则解析
func (alwaysAllowAuthorizer) RulesFor(user user.Info, namespace string) ([]authorizer.ResourceRuleInfo, []authorizer.NonResourceRuleInfo, bool, error) {
	// 支持所有 API
	return []authorizer.ResourceRuleInfo{
			&authorizer.DefaultResourceRuleInfo{
				Verbs:     []string{"*"},
				APIGroups: []string{"*"},
				Resources: []string{"*"},
			},
		}, []authorizer.NonResourceRuleInfo{
			&authorizer.DefaultNonResourceRuleInfo{
				Verbs:           []string{"*"},
				NonResourceURLs: []string{"*"},
			},
		}, false, nil
}

func NewAlwaysAllowAuthorizer() *alwaysAllowAuthorizer {
	return new(alwaysAllowAuthorizer)
}

其它的不再一一贴出，举一反三即可。

下一回继续看准入控制。

微信公众号

更多内容请关注微信公众号：gopher云原生

06. kube-apiserver handler 处理流程08. kube-apiserver API 准入控制
