05. kube-apiserver 启动 HTTP Server

// cmd/kube-apiserver/app/server.go

func Run(completeOptions completedServerRunOptions, stopCh <-chan struct{}) error {
	// 创建服务调用链，返回的 server 即 AggregatorServer

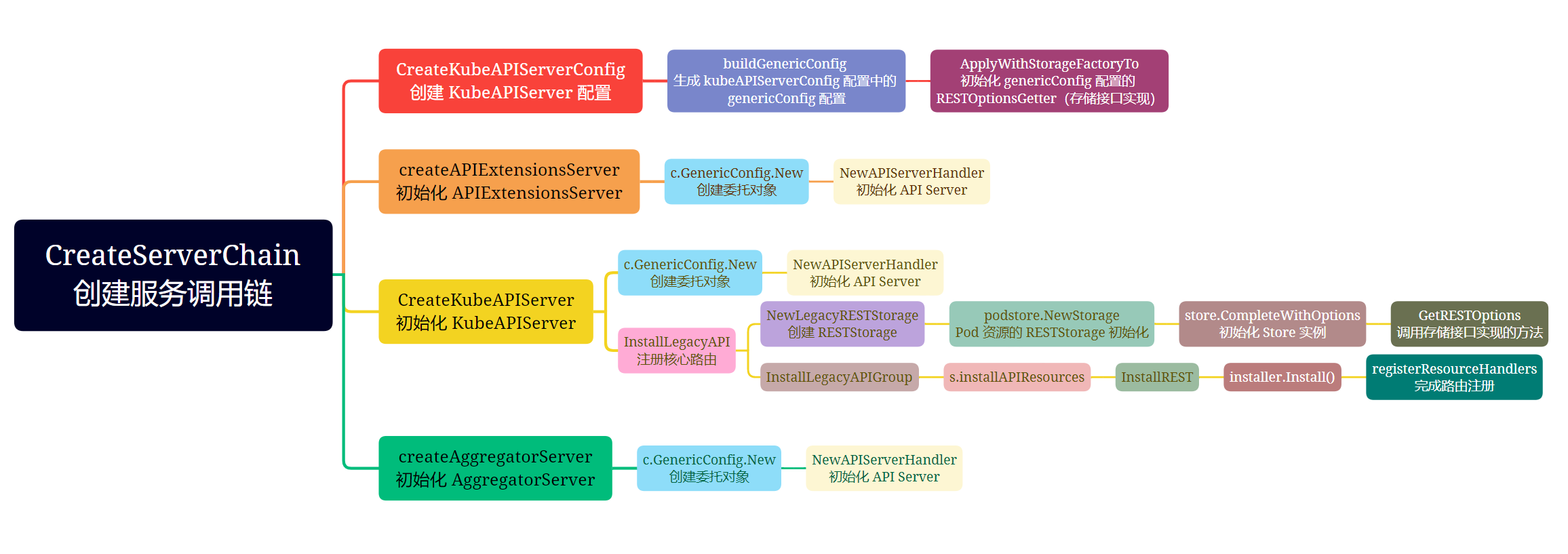

	server, err := CreateServerChain(completeOptions)

	// 服务启动前的准备工作
	prepared, err := server.PrepareRun()

	// 服务启动
	return prepared.Run(stopCh)
}

// k8s.io/kube-aggregator/pkg/apiserver/apiserver.go

func (s *APIAggregator) PrepareRun() (preparedAPIAggregator, error) {
	// ...

	// 调用 GenericAPIServer （实现了 DelegationTarget 接口）的 PrepareRun 方法
	prepared := s.GenericAPIServer.PrepareRun()

	// prepared 是 runnable 的实现
	return preparedAPIAggregator{APIAggregator: s, runnable: prepared}, nil
}

// k8s.io/apiserver/pkg/server/genericapiserver.go

// 递归调用委托对象的 PrepareRun 方法，直到最后一个
func (s *GenericAPIServer) PrepareRun() preparedGenericAPIServer {
	// 调用下一个委托对象的 PrepareRun 方法
	s.delegationTarget.PrepareRun()

	// OpenAPI 路由的注册
	if s.openAPIConfig != nil && !s.skipOpenAPIInstallation {
		s.OpenAPIVersionedService, s.StaticOpenAPISpec = routes.OpenAPI{
			Config: s.openAPIConfig,
		}.InstallV2(s.Handler.GoRestfulContainer, s.Handler.NonGoRestfulMux)
	}

	if s.openAPIV3Config != nil && !s.skipOpenAPIInstallation {
		if utilfeature.DefaultFeatureGate.Enabled(features.OpenAPIV3) {
			s.OpenAPIV3VersionedService = routes.OpenAPI{
				Config: s.openAPIV3Config,
			}.InstallV3(s.Handler.GoRestfulContainer, s.Handler.NonGoRestfulMux)
		}
	}

	// 健康检查
	s.installHealthz()
	// 存活检查
	s.installLivez()

	// as soon as shutdown is initiated, readiness should start failing
	readinessStopCh := s.lifecycleSignals.ShutdownInitiated.Signaled()
	err := s.addReadyzShutdownCheck(readinessStopCh)
	if err != nil {
		klog.Errorf("Failed to install readyz shutdown check %s", err)
	}
	// 启动准备就绪检查
	s.installReadyz()

	return preparedGenericAPIServer{s}
}

// k8s.io/kube-aggregator/pkg/apiserver/apiserver.go

type runnable interface {
	Run(stopCh <-chan struct{}) error
}

func (s preparedAPIAggregator) Run(stopCh <-chan struct{}) error {
	return s.runnable.Run(stopCh)
}

// k8s.io/apiserver/pkg/server/genericapiserver.go

// 实现了 runnable 接口
type preparedGenericAPIServer struct {
	*GenericAPIServer
}

// 启动 kube-apiserver 服务
func (s preparedGenericAPIServer) Run(stopCh <-chan struct{}) error {
	// ...

	// 非阻塞的方式启动服务
	stoppedCh, listenerStoppedCh, err := s.NonBlockingRun(stopHttpServerCh, shutdownTimeout)
	if err != nil {
		return err
	}

	//...
	// 阻塞等待服务退出信号
	<-stopCh
	// 服务退出后的一些收尾工作
	// ...

	// 等待服务器的优雅关闭
	<-listenerStoppedCh
	<-stoppedCh

	klog.V(1).Info("[graceful-termination] apiserver is exiting")
	return nil
}

// k8s.io/apiserver/pkg/server/genericapiserver.go

func (s preparedGenericAPIServer) NonBlockingRun(stopCh <-chan struct{}, shutdownTimeout time.Duration) (<-chan struct{}, <-chan struct{}, error) {
	internalStopCh := make(chan struct{})
	var stoppedCh <-chan struct{}
	var listenerStoppedCh <-chan struct{}
	if s.SecureServingInfo != nil && s.Handler != nil {
		var err error
		// 启动 HTTP Server
		stoppedCh, listenerStoppedCh, err = s.SecureServingInfo.Serve(s.Handler, shutdownTimeout, internalStopCh)
		if err != nil {
			close(internalStopCh)
			return nil, nil, err
		}
	}

	// ...

	return stoppedCh, listenerStoppedCh, nil
}

// k8s.io/apiserver/pkg/server/secure_serving.go

// Serve runs the secure http server. It fails only if certificates cannot be loaded or the initial listen call fails.
// The actual server loop (stoppable by closing stopCh) runs in a go routine, i.e. Serve does not block.
// It returns a stoppedCh that is closed when all non-hijacked active requests have been processed.
// It returns a listenerStoppedCh that is closed when the underlying http Server has stopped listening.
func (s *SecureServingInfo) Serve(handler http.Handler, shutdownTimeout time.Duration, stopCh <-chan struct{}) (<-chan struct{}, <-chan struct{}, error) {
	if s.Listener == nil {
		return nil, nil, fmt.Errorf("listener must not be nil")
	}

	tlsConfig, err := s.tlsConfig(stopCh)
	if err != nil {
		return nil, nil, err
	}

	secureServer := &http.Server{
		Addr:           s.Listener.Addr().String(),
		Handler:        handler,
		MaxHeaderBytes: 1 << 20,
		TLSConfig:      tlsConfig,

		IdleTimeout:       90 * time.Second, // matches http.DefaultTransport keep-alive timeout
		ReadHeaderTimeout: 32 * time.Second, // just shy of requestTimeoutUpperBound
	}

	// At least 99% of serialized resources in surveyed clusters were smaller than 256kb.
	// This should be big enough to accommodate most API POST requests in a single frame,
	// and small enough to allow a per connection buffer of this size multiplied by `MaxConcurrentStreams`.
	const resourceBody99Percentile = 256 * 1024

	http2Options := &http2.Server{
		IdleTimeout: 90 * time.Second, // matches http.DefaultTransport keep-alive timeout
	}

	// shrink the per-stream buffer and max framesize from the 1MB default while still accommodating most API POST requests in a single frame
	http2Options.MaxUploadBufferPerStream = resourceBody99Percentile
	http2Options.MaxReadFrameSize = resourceBody99Percentile

	// use the overridden concurrent streams setting or make the default of 250 explicit so we can size MaxUploadBufferPerConnection appropriately
	if s.HTTP2MaxStreamsPerConnection > 0 {
		http2Options.MaxConcurrentStreams = uint32(s.HTTP2MaxStreamsPerConnection)
	} else {
		http2Options.MaxConcurrentStreams = 250
	}

	// increase the connection buffer size from the 1MB default to handle the specified number of concurrent streams
	http2Options.MaxUploadBufferPerConnection = http2Options.MaxUploadBufferPerStream * int32(http2Options.MaxConcurrentStreams)

	if !s.DisableHTTP2 {
		// apply settings to the server
		if err := http2.ConfigureServer(secureServer, http2Options); err != nil {
			return nil, nil, fmt.Errorf("error configuring http2: %v", err)
		}
	}

	// use tlsHandshakeErrorWriter to handle messages of tls handshake error
	tlsErrorWriter := &tlsHandshakeErrorWriter{os.Stderr}
	tlsErrorLogger := log.New(tlsErrorWriter, "", 0)
	secureServer.ErrorLog = tlsErrorLogger

	klog.Infof("Serving securely on %s", secureServer.Addr)
	return RunServer(secureServer, s.Listener, shutdownTimeout, stopCh)
}

// RunServer spawns a go-routine continuously serving until the stopCh is
// closed.
// It returns a stoppedCh that is closed when all non-hijacked active requests
// have been processed.
// This function does not block
// TODO: make private when insecure serving is gone from the kube-apiserver
func RunServer(
	server *http.Server,
	ln net.Listener,
	shutDownTimeout time.Duration,
	stopCh <-chan struct{},
) (<-chan struct{}, <-chan struct{}, error) {
	if ln == nil {
		return nil, nil, fmt.Errorf("listener must not be nil")
	}

	// Shutdown server gracefully.
	serverShutdownCh, listenerStoppedCh := make(chan struct{}), make(chan struct{})
	go func() {
		defer close(serverShutdownCh)
		<-stopCh
		ctx, cancel := context.WithTimeout(context.Background(), shutDownTimeout)
		server.Shutdown(ctx)
		cancel()
	}()

	go func() {
		defer utilruntime.HandleCrash()
		defer close(listenerStoppedCh)

		var listener net.Listener
		listener = tcpKeepAliveListener{ln}
		if server.TLSConfig != nil {
			listener = tls.NewListener(listener, server.TLSConfig)
		}

		err := server.Serve(listener)

		msg := fmt.Sprintf("Stopped listening on %s", ln.Addr().String())
		select {
		case <-stopCh:
			klog.Info(msg)
		default:
			panic(fmt.Sprintf("%s due to error: %v", msg, err))
		}
	}()

	return serverShutdownCh, listenerStoppedCh, nil
}
