04. KubeAPIServer 的存储接口实现

上回讲到 KubeAPIServer 在核心路由注册过程中，主要分成两步，第一步创建 RESTStorage 将后端存储与资源进行绑定，第二步才进行路由注册。

路由注册已经讲了，回过头来看看 RESTStorage 的创建：

// pkg/controlplane/instance.go

func (m *Instance) InstallLegacyAPI(c *completedConfig, restOptionsGetter generic.RESTOptionsGetter) error {
	// 主要是为 LegacyAPI 中各个资源创建 RESTStorage
	// 并将各种资源和对应的后端存储（etcd）的操作绑定
	// 传递 generic.RESTOptionsGetter 类型参数
	// generic.RESTOptionsGetter 是存储接口的实现（先有个印象，稍后再看）
	legacyRESTStorage, apiGroupInfo, err := legacyRESTStorageProvider.NewLegacyRESTStorage(c.ExtraConfig.APIResourceConfigSource, restOptionsGetter)
	if err != nil {
		return fmt.Errorf("error building core storage: %v", err)
	}

	// ...
	// 路由注册
	return nil
}

跳到 NewLegacyRESTStorage 方法，先为每个资源的 RESTStorage 初始化：

// pkg/registry/core/rest/storage_core.go
func (c LegacyRESTStorageProvider) NewLegacyRESTStorage(apiResourceConfigSource serverstorage.APIResourceConfigSource, restOptionsGetter generic.RESTOptionsGetter) (LegacyRESTStorage, genericapiserver.APIGroupInfo, error) {
	// ...
	restStorage := LegacyRESTStorage{}

	// 每个资源的初始化都传递了 generic.RESTOptionsGetter 类型参数，即存储接口的实现

	// PodTemplate 资源的 RESTStorage 初始化
	podTemplateStorage, err := podtemplatestore.NewREST(restOptionsGetter)

	// Event 资源的 RESTStorage 初始化
	eventStorage, err := eventstore.NewREST(restOptionsGetter, uint64(c.EventTTL.Seconds()))

	// LimitRange 资源的 RESTStorage 初始化
	limitRangeStorage, err := limitrangestore.NewREST(restOptionsGetter)

	// ResourceQuota 资源的 RESTStorage 初始化
	resourceQuotaStorage, resourceQuotaStatusStorage, err := resourcequotastore.NewREST(restOptionsGetter)

	// Secret 资源的 RESTStorage 初始化
	secretStorage, err := secretstore.NewREST(restOptionsGetter)

	// PersistentVolume 资源的 RESTStorage 初始化
	persistentVolumeStorage, persistentVolumeStatusStorage, err := pvstore.NewREST(restOptionsGetter)

	// PersistentVolumeClaim 资源的 RESTStorage 初始化
	persistentVolumeClaimStorage, persistentVolumeClaimStatusStorage, err := pvcstore.NewREST(restOptionsGetter)

	// ConfigMap 资源的 RESTStorage 初始化
	configMapStorage, err := configmapstore.NewREST(restOptionsGetter)

	// Namespace 资源的 RESTStorage 初始化
	namespaceStorage, namespaceStatusStorage, namespaceFinalizeStorage, err := namespacestore.NewREST(restOptionsGetter)

	// Endpoints 资源的 RESTStorage 初始化
	endpointsStorage, err := endpointsstore.NewREST(restOptionsGetter)

	// Node 资源的 RESTStorage 初始化
	nodeStorage, err := nodestore.NewStorage(restOptionsGetter, c.KubeletClientConfig, c.ProxyTransport)

	// Pod 资源的 RESTStorage 初始化
	podStorage, err := podstore.NewStorage(
		restOptionsGetter,
		nodeStorage.KubeletConnectionInfo,
		c.ProxyTransport,
		podDisruptionClient,
	)

	// ServiceAccount 资源的 RESTStorage 初始化
	var serviceAccountStorage *serviceaccountstore.REST
	if c.ServiceAccountIssuer != nil {
		serviceAccountStorage, err = serviceaccountstore.NewREST(restOptionsGetter, c.ServiceAccountIssuer, c.APIAudiences, c.ServiceAccountMaxExpiration, podStorage.Pod.Store, secretStorage.Store, c.ExtendExpiration)
	} else {
		serviceAccountStorage, err = serviceaccountstore.NewREST(restOptionsGetter, nil, nil, 0, nil, nil, false)
	}


	// ......
}

再将资源和对应的 RESTStorage 进行绑定：

// pkg/registry/core/rest/storage_core.go
func (c LegacyRESTStorageProvider) NewLegacyRESTStorage(apiResourceConfigSource serverstorage.APIResourceConfigSource, restOptionsGetter generic.RESTOptionsGetter) (LegacyRESTStorage, genericapiserver.APIGroupInfo, error) {
	// ......

	// 利用 map 来保存资源的 http path 和对应的 RESTStorage
	storage := map[string]rest.Storage{}
	if resource := "pods"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = podStorage.Pod

		// 对于 Pod 资源，有很多细分的 path 及其 RESTStorage
		storage[resource+"/attach"] = podStorage.Attach
		storage[resource+"/status"] = podStorage.Status
		storage[resource+"/log"] = podStorage.Log
		storage[resource+"/exec"] = podStorage.Exec
		storage[resource+"/portforward"] = podStorage.PortForward
		storage[resource+"/proxy"] = podStorage.Proxy
		storage[resource+"/binding"] = podStorage.Binding
		if podStorage.Eviction != nil {
			storage[resource+"/eviction"] = podStorage.Eviction
		}
		storage[resource+"/ephemeralcontainers"] = podStorage.EphemeralContainers

	}
	if resource := "bindings"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = podStorage.LegacyBinding
	}

	if resource := "podtemplates"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = podTemplateStorage
	}

	if resource := "replicationcontrollers"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = controllerStorage.Controller
		storage[resource+"/status"] = controllerStorage.Status
		if legacyscheme.Scheme.IsVersionRegistered(schema.GroupVersion{Group: "autoscaling", Version: "v1"}) {
			storage[resource+"/scale"] = controllerStorage.Scale
		}
	}

	if resource := "services"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = serviceRESTStorage
		storage[resource+"/proxy"] = serviceRESTProxy
		storage[resource+"/status"] = serviceStatusStorage
	}

	if resource := "endpoints"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = endpointsStorage
	}

	if resource := "nodes"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = nodeStorage.Node
		storage[resource+"/proxy"] = nodeStorage.Proxy
		storage[resource+"/status"] = nodeStorage.Status
	}

	if resource := "events"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = eventStorage
	}

	if resource := "limitranges"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = limitRangeStorage
	}

	if resource := "resourcequotas"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = resourceQuotaStorage
		storage[resource+"/status"] = resourceQuotaStatusStorage
	}

	if resource := "namespaces"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = namespaceStorage
		storage[resource+"/status"] = namespaceStatusStorage
		storage[resource+"/finalize"] = namespaceFinalizeStorage
	}

	if resource := "secrets"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = secretStorage
	}

	if resource := "serviceaccounts"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = serviceAccountStorage
		if serviceAccountStorage.Token != nil {
			storage[resource+"/token"] = serviceAccountStorage.Token
		}
	}

	if resource := "persistentvolumes"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = persistentVolumeStorage
		storage[resource+"/status"] = persistentVolumeStatusStorage
	}

	if resource := "persistentvolumeclaims"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = persistentVolumeClaimStorage
		storage[resource+"/status"] = persistentVolumeClaimStatusStorage
	}

	if resource := "configmaps"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = configMapStorage
	}

	if resource := "componentstatuses"; apiResourceConfigSource.ResourceEnabled(corev1.SchemeGroupVersion.WithResource(resource)) {
		storage[resource] = componentstatus.NewStorage(componentStatusStorage{c.StorageFactory}.serversToValidate)
	}

	if len(storage) > 0 {
		apiGroupInfo.VersionedResourcesStorageMap["v1"] = storage
	}

	return restStorage, apiGroupInfo, nil
}

存储了所有资源路径和对应 RESTStorage 的 map 结构最后会保存在 apiGroupInfo 中并返回给后续的路由注册使用（见上回）。这样后续的 handler 就可以通过对应的 RESTStorage 来操作 etcd 存取数据，同时这种做法还可以划分每个资源对 Storage 操作的权限，保障数据的安全性。

继续以 Pod 资源的 RESTStorage 初始化为例，来到 podstore.NewStorage 方法：

// pkg/registry/core/pod/storage/storage.go
func NewStorage(optsGetter generic.RESTOptionsGetter, k client.ConnectionInfoGetter, proxyTransport http.RoundTripper, podDisruptionBudgetClient policyclient.PodDisruptionBudgetsGetter) (PodStorage, error) {

	// 创建 Store 实例
	store := &genericregistry.Store{
		NewFunc:                   func() runtime.Object { return &api.Pod{} },
		NewListFunc:               func() runtime.Object { return &api.PodList{} },
		PredicateFunc:             registrypod.MatchPod,
		DefaultQualifiedResource:  api.Resource("pods"),
		SingularQualifiedResource: api.Resource("pod"),

		CreateStrategy:      registrypod.Strategy,
		UpdateStrategy:      registrypod.Strategy,
		DeleteStrategy:      registrypod.Strategy,
		ResetFieldsStrategy: registrypod.Strategy,
		ReturnDeletedObject: true,

		TableConvertor: printerstorage.TableConvertor{TableGenerator: printers.NewTableGenerator().With(printersinternal.AddHandlers)},
	}
	// Store 配置
	options := &generic.StoreOptions{
		// RESTOptions 就是传入的存储接口的实现
		RESTOptions: optsGetter,
		AttrFunc:    registrypod.GetAttrs,
		TriggerFunc: map[string]storage.IndexerFunc{"spec.nodeName": registrypod.NodeNameTriggerFunc},
		Indexers:    registrypod.Indexers(),
	}
	// 初始化 Store 实例，传递 options 参数
	if err := store.CompleteWithOptions(options); err != nil {
		return PodStorage{}, err
	}

	// 给 Pod 资源的路径绑定上 Store 实例，返回 PodStorage 对象
	statusStore := *store
	statusStore.UpdateStrategy = registrypod.StatusStrategy
	statusStore.ResetFieldsStrategy = registrypod.StatusStrategy
	ephemeralContainersStore := *store
	ephemeralContainersStore.UpdateStrategy = registrypod.EphemeralContainersStrategy

	bindingREST := &BindingREST{store: store}
	return PodStorage{
		Pod:                 &REST{store, proxyTransport},
		Binding:             &BindingREST{store: store},
		LegacyBinding:       &LegacyBindingREST{bindingREST},
		Eviction:            newEvictionStorage(&statusStore, podDisruptionBudgetClient),
		Status:              &StatusREST{store: &statusStore},
		EphemeralContainers: &EphemeralContainersREST{store: &ephemeralContainersStore},
		Log:                 &podrest.LogREST{Store: store, KubeletConn: k},
		Proxy:               &podrest.ProxyREST{Store: store, ProxyTransport: proxyTransport},
		Exec:                &podrest.ExecREST{Store: store, KubeletConn: k},
		Attach:              &podrest.AttachREST{Store: store, KubeletConn: k},
		PortForward:         &podrest.PortForwardREST{Store: store, KubeletConn: k},
	}, nil
}

跳到初始化 Store 实例的 store.CompleteWithOptions 方法：

// k8s.io/apiserver/pkg/registry/generic/registry/store.go
func (e *Store) CompleteWithOptions(options *generic.StoreOptions) error {
	// ...

	// RESTOptions 是存储接口的实现
	// 调用 RESTOptions 的 GetRESTOptions 方法获取对应的存储实现的选项 opts
	opts, err := options.RESTOptions.GetRESTOptions(e.DefaultQualifiedResource)
	if err != nil {
		return err
	}

	// 将 opts 中的值赋给 e 即 Store 实例，完成对 Store 实例的初始化
	if e.DeleteCollectionWorkers == 0 {
		e.DeleteCollectionWorkers = opts.DeleteCollectionWorkers
	}

	e.EnableGarbageCollection = opts.EnableGarbageCollection
	// ...

	if e.Storage.Storage == nil {
		e.Storage.Codec = opts.StorageConfig.Codec
		var err error
		e.Storage.Storage, e.DestroyFunc, err = opts.Decorator(
			opts.StorageConfig,
			prefix,
			keyFunc,
			e.NewFunc,
			e.NewListFunc,
			attrFunc,
			options.TriggerFunc,
			options.Indexers,
		)
		if err != nil {
			return err
		}
		e.StorageVersioner = opts.StorageConfig.EncodeVersioner

		if opts.CountMetricPollPeriod > 0 {
			stopFunc := e.startObservingCount(opts.CountMetricPollPeriod, opts.StorageObjectCountTracker)
			previousDestroy := e.DestroyFunc
			var once sync.Once
			e.DestroyFunc = func() {
				once.Do(func() {
					stopFunc()
					if previousDestroy != nil {
						previousDestroy()
					}
				})
			}
		}
	}

	return nil
}

到这里，Pod 资源的 RESTStorage 初始化完成。

接下来就开始看看一直提到的存储接口的实现 generic.RESTOptionsGetter ，它是一个接口类型：

// k8s.io/apiserver/pkg/registry/generic/options.go

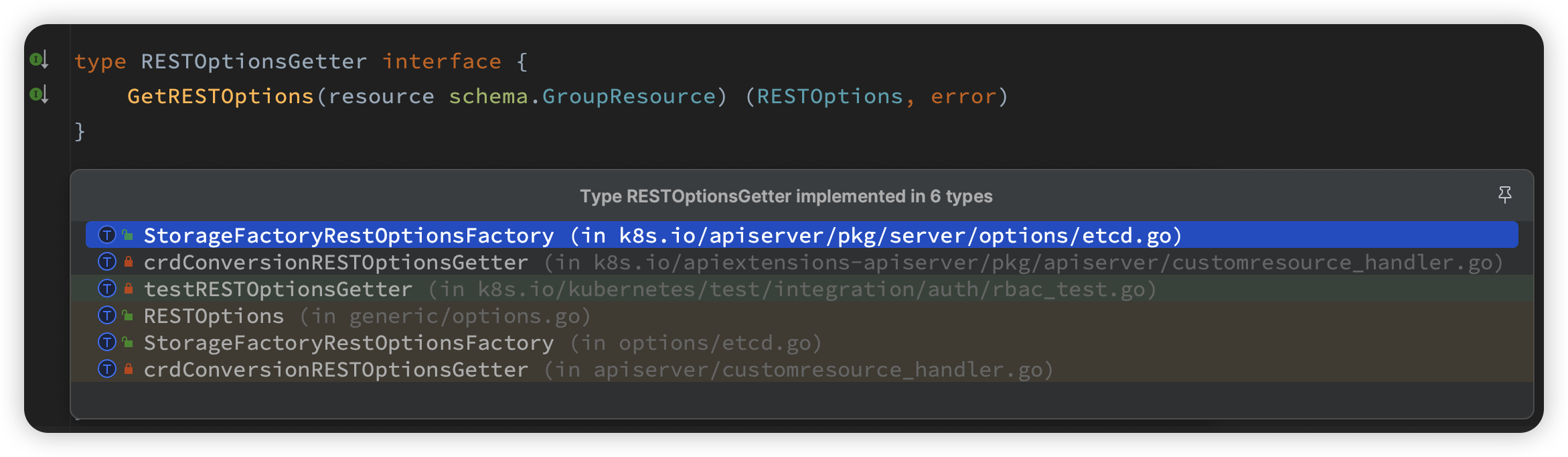

type RESTOptionsGetter interface {
	GetRESTOptions(resource schema.GroupResource) (RESTOptions, error)
}

Untitled

要找到 KubeAPIServer 对应的实现，我们要回到最开始为 KubeAPIServer 创建配置的地方，即第2回中创建服务调用链的地方：

// cmd/kube-apiserver/app/server.go
func CreateServerChain(completedOptions completedServerRunOptions) (*aggregatorapiserver.APIAggregator, error) {
	// 为 KubeAPIServer 创建配置
	kubeAPIServerConfig, serviceResolver, pluginInitializer, err := CreateKubeAPIServerConfig(completedOptions)
	if err != nil {
		return nil, err
	}

	// ...
	return aggregatorServer, nil
}

// cmd/kube-apiserver/app/server.go
func CreateKubeAPIServerConfig(s completedServerRunOptions) (
	*controlplane.Config,
	aggregatorapiserver.ServiceResolver,
	[]admission.PluginInitializer,
	error,
) {
	proxyTransport := CreateProxyTransport()
	// 跳到 buildGenericConfig
	genericConfig, versionedInformers, serviceResolver, pluginInitializers, admissionPostStartHook, storageFactory, err := buildGenericConfig(s.ServerRunOptions, proxyTransport)

	// ...
	return config, serviceResolver, pluginInitializers, nil
}

// cmd/kube-apiserver/app/server.go
func buildGenericConfig(
	s *options.ServerRunOptions,
	proxyTransport *http.Transport,
) (
	genericConfig *genericapiserver.Config,
	versionedInformers clientgoinformers.SharedInformerFactory,
	serviceResolver aggregatorapiserver.ServiceResolver,
	pluginInitializers []admission.PluginInitializer,
	admissionPostStartHook genericapiserver.PostStartHookFunc,
	storageFactory *serverstorage.DefaultStorageFactory,
	lastErr error,
) {
	// ...

	// RESTOptionsGetter 的初始化
	if lastErr = s.Etcd.ApplyWithStorageFactoryTo(storageFactory, genericConfig); lastErr != nil {
		return
	}

	// ...

	return
}

// k8s.io/apiserver/pkg/server/options/etcd.go
func (s *EtcdOptions) ApplyWithStorageFactoryTo(factory serverstorage.StorageFactory, c *server.Config) error {
	//...

	// RESTOptionsGetter 的实现是 StorageFactoryRestOptionsFactory
	c.RESTOptionsGetter = &StorageFactoryRestOptionsFactory{Options: *s, StorageFactory: factory}
	return nil
}

总结下完整的调用链：

存储接口的实现：

CreateServerChain 创建服务调用链 → CreateKubeAPIServerConfig 创建 kubeAPIServerConfig 配置 → buildGenericConfig 生成 kubeAPIServerConfig 配置中的 genericConfig 配置 → ApplyWithStorageFactoryTo 初始化 genericConfig 配置的 RESTOptionsGetter

存储接口的使用：

CreateServerChain 创建服务调用链 → CreateKubeAPIServer 初始化服务传入 kubeAPIServerConfig 配置 → kubeAPIServerConfig.Complete().New(delegateAPIServer) → InstallLegacyAPI 核心路由注册传入 kubeAPIServerConfig.GenericConfig.RESTOptionsGetter 存储实现

回到刚才，得知 RESTOptionsGetter 使用了 StorageFactoryRestOptionsFactory 来实现存储接口：

// k8s.io/apiserver/pkg/server/options/etcd.go

// RESTOptionsGetter 接口的一个实现
type StorageFactoryRestOptionsFactory struct {
	Options        EtcdOptions
	StorageFactory serverstorage.StorageFactory
}

func (f *StorageFactoryRestOptionsFactory) GetRESTOptions(resource schema.GroupResource) (generic.RESTOptions, error) {
	storageConfig, err := f.StorageFactory.NewConfig(resource)
	if err != nil {
		return generic.RESTOptions{}, fmt.Errorf("unable to find storage destination for %v, due to %v", resource, err.Error())
	}

	ret := generic.RESTOptions{
		StorageConfig:             storageConfig,
		Decorator:                 generic.UndecoratedStorage,
		DeleteCollectionWorkers:   f.Options.DeleteCollectionWorkers,
		EnableGarbageCollection:   f.Options.EnableGarbageCollection,
		ResourcePrefix:            f.StorageFactory.ResourcePrefix(resource),
		CountMetricPollPeriod:     f.Options.StorageConfig.CountMetricPollPeriod,
		StorageObjectCountTracker: f.Options.StorageConfig.StorageObjectCountTracker,
	}

	if f.Options.EnableWatchCache {
		sizes, err := ParseWatchCacheSizes(f.Options.WatchCacheSizes)
		if err != nil {
			return generic.RESTOptions{}, err
		}
		size, ok := sizes[resource]
		if ok && size > 0 {
			klog.Warningf("Dropping watch-cache-size for %v - watchCache size is now dynamic", resource)
		}
		if ok && size <= 0 {
			klog.V(3).InfoS("Not using watch cache", "resource", resource)
			// 不使用 watch cache 的 Storage 实现
			ret.Decorator = generic.UndecoratedStorage
		} else {
			klog.V(3).InfoS("Using watch cache", "resource", resource)
			// 使用 watch cache 的 Storage 实现
			ret.Decorator = genericregistry.StorageWithCacher()
		}
	}

	return ret, nil
}

不论是否使用 watch cache 的 Storage 实现，都会调用 generic.NewRawStorage 方法：

func UndecoratedStorage(
	config *storagebackend.ConfigForResource,
	resourcePrefix string,
	keyFunc func(obj runtime.Object) (string, error),
	newFunc func() runtime.Object,
	newListFunc func() runtime.Object,
	getAttrsFunc storage.AttrFunc,
	trigger storage.IndexerFuncs,
	indexers *cache.Indexers) (storage.Interface, factory.DestroyFunc, error) {
	return NewRawStorage(config, newFunc)
}

func StorageWithCacher() generic.StorageDecorator {
	return func(
		storageConfig *storagebackend.ConfigForResource,
		resourcePrefix string,
		keyFunc func(obj runtime.Object) (string, error),
		newFunc func() runtime.Object,
		newListFunc func() runtime.Object,
		getAttrsFunc storage.AttrFunc,
		triggerFuncs storage.IndexerFuncs,
		indexers *cache.Indexers) (storage.Interface, factory.DestroyFunc, error) {

		s, d, err := generic.NewRawStorage(storageConfig, newFunc)
		//...

		return cacher, destroyFunc, nil
	}
}

看到 NewRawStorage 方法：

// k8s.io/apiserver/pkg/registry/generic/storage_decorator.go
func NewRawStorage(config *storagebackend.ConfigForResource, newFunc func() runtime.Object) (storage.Interface, factory.DestroyFunc, error) {
	return factory.Create(*config, newFunc)
}

// k8s.io/apiserver/pkg/storage/storagebackend/factory/factory.go
func Create(c storagebackend.ConfigForResource, newFunc func() runtime.Object) (storage.Interface, DestroyFunc, error) {
	switch c.Type {
	case storagebackend.StorageTypeETCD2:
		return nil, nil, fmt.Errorf("%s is no longer a supported storage backend", c.Type)
	case storagebackend.StorageTypeUnset, storagebackend.StorageTypeETCD3:
		// 只支持 etcd V3
		return newETCD3Storage(c, newFunc)
	default:
		return nil, nil, fmt.Errorf("unknown storage type: %s", c.Type)
	}
}

来到终点站 newETCD3Storage 方法：

// k8s.io/apiserver/pkg/storage/storagebackend/factory/etcd3.go

func newETCD3Storage(c storagebackend.ConfigForResource, newFunc func() runtime.Object) (storage.Interface, DestroyFunc, error) {
	// ...

	// 创建 etcd V3 的 client
	client, err := newETCD3Client(c.Transport)
	if err != nil {
		stopCompactor()
		return nil, nil, err
	}

	// ...
	return etcd3.New(client, c.Codec, newFunc, c.Prefix, c.GroupResource, transformer, c.Paging, c.LeaseManagerConfig), destroyFunc, nil
}

var newETCD3Client = func(c storagebackend.TransportConfig) (*clientv3.Client, error) {
	// ...

	cfg := clientv3.Config{
		DialTimeout:          dialTimeout,
		DialKeepAliveTime:    keepaliveTime,
		DialKeepAliveTimeout: keepaliveTimeout,
		DialOptions:          dialOptions,
		Endpoints:            c.ServerList,
		TLS:                  tlsConfig,
		Logger:               etcd3ClientLogger,
	}

	// 调用 etcd 官方库 go.etcd.io/etcd/client/v3
	return clientv3.New(cfg)
}

至此，etcd 的初始化便完成。

微信公众号

更多内容请关注微信公众号：gopher云原生

03. KubeAPIServer 路由注册 05. kube-apiserver 启动 HTTP Server
