03. KubeAPIServer 路由注册

03. KubeAPIServer 路由注册

接上回说到的 AggregatorServer 、KubeAPIServer 、APIExtensionsServer 三个服务。

重点看 API 核心服务，即 KubeAPIServer 的路由注册实现（ AggregatorServer 和 APIExtensionsServer 的实现是类似的）。

回到初始化 KubeAPIServer 的 CreateKubeAPIServer 函数：

// cmd/kube-apiserver/app/server.go #230
func CreateKubeAPIServer(kubeAPIServerConfig *controlplane.Config, delegateAPIServer genericapiserver.DelegationTarget) (*controlplane.Instance, error) {
	return kubeAPIServerConfig.Complete().New(delegateAPIServer)
}

kubeAPIServerConfig.Complete() 方法不展开，主要是用于确保 KubeAPIServer 的配置完整性和合法性，看 New 方法：

// pkg/controlplane/instance.go #352
func (c completedConfig) New(delegationTarget genericapiserver.DelegationTarget) (*Instance, error) {
	// ...

	// 创建 KubeAPIServer 委托对象（见上回）
	s, err := c.GenericConfig.New("kube-apiserver", delegationTarget)
	if err != nil {
		return nil, err
	}

	// 待会再看...
}

// k8s.io/apiserver/pkg/server/config.go #665
func (c completedConfig) New(name string, delegationTarget DelegationTarget) (*GenericAPIServer, error) {
	// ...

  // 用于完整的处理程序链 FullHandlerChain 的构建
	handlerChainBuilder := func(handler http.Handler) http.Handler {
		return c.BuildHandlerChainFunc(handler, c.Config)
	}

	// ...

	// 创建 API Server 的 Handler 处理器（见上回）
	apiServerHandler := NewAPIServerHandler(name, c.Serializer, handlerChainBuilder, delegationTarget.UnprotectedHandler())

	// 初始化 GenericAPIServer
	s := &GenericAPIServer{
		// ...
		Handler:                        apiServerHandler,
		// ...
	}

	// ...
	// 注册 /、/debug/*、/metrics、/version、/apis 基本路由
	installAPI(s, c.Config)

	// ...
	return s, nil
}

首先在 c.GenericConfig.New("kube-apiserver", delegationTarget) 中会调用 installAPI 来注册 /、/debug/*、/metrics、/version 、/apis 基本路由（这是三个服务都一样的流程）：

// k8s.io/apiserver/pkg/server/config.go #962
func installAPI(s *GenericAPIServer, c *Config) {

	// 如果启用了索引功能，则注册 / 和 /index.html 为索引页面，展示所有的路由列表 listedPathProvider
	if c.EnableIndex {
		routes.Index{}.Install(s.listedPathProvider, s.Handler.NonGoRestfulMux)
	}

	// 如果启用了性能分析功能，则注册 /debug/* 路由
	if c.EnableProfiling {
		// 注册 /debug/pprof 相关路由
		routes.Profiling{}.Install(s.Handler.NonGoRestfulMux)
		if c.EnableContentionProfiling {
			goruntime.SetBlockProfileRate(1)
		}
		// 注册 /debug/flags 相关路由
		// so far, only logging related endpoints are considered valid to add for these debug flags.
		routes.DebugFlags{}.Install(s.Handler.NonGoRestfulMux, "v", routes.StringFlagPutHandler(logs.GlogSetter))
	}

	// 如果启用了未进行认证授权的用于调试功能的 Socket 接口，同上为其注册 /debug/* 路由
	if s.UnprotectedDebugSocket != nil {
		s.UnprotectedDebugSocket.InstallProfiling()
		s.UnprotectedDebugSocket.InstallDebugFlag("v", routes.StringFlagPutHandler(logs.GlogSetter))
		if c.EnableContentionProfiling {
			goruntime.SetBlockProfileRate(1)
		}
	}

	// 如果启用了指标功能，注册 /metrics 路由
	if c.EnableMetrics {
		if c.EnableProfiling {
			routes.MetricsWithReset{}.Install(s.Handler.NonGoRestfulMux)
			if utilfeature.DefaultFeatureGate.Enabled(features.ComponentSLIs) {
				slis.SLIMetricsWithReset{}.Install(s.Handler.NonGoRestfulMux)
			}
		} else {
			routes.DefaultMetrics{}.Install(s.Handler.NonGoRestfulMux)
			if utilfeature.DefaultFeatureGate.Enabled(features.ComponentSLIs) {
				slis.SLIMetrics{}.Install(s.Handler.NonGoRestfulMux)
			}
		}
	}

	// 注册 /version 路由
	routes.Version{Version: c.Version}.Install(s.Handler.GoRestfulContainer)

	// 如果启用了服务发现功能，则注册 /apis 路由，用于展示 APIGroupList 信息
	if c.EnableDiscovery {
		if utilfeature.DefaultFeatureGate.Enabled(genericfeatures.AggregatedDiscoveryEndpoint) {
			wrapped := discoveryendpoint.WrapAggregatedDiscoveryToHandler(s.DiscoveryGroupManager, s.AggregatedDiscoveryGroupManager)
			s.Handler.GoRestfulContainer.Add(wrapped.GenerateWebService("/apis", metav1.APIGroupList{}))
		} else {
			s.Handler.GoRestfulContainer.Add(s.DiscoveryGroupManager.WebService())
		}
	}

	// 安装流量控制器中间件，用于控制 API 请求优先级和公平性
	if c.FlowControl != nil && utilfeature.DefaultFeatureGate.Enabled(genericfeatures.APIPriorityAndFairness) {
		c.FlowControl.Install(s.Handler.NonGoRestfulMux)
	}
}

借助第1回的 kubectl proxy --port=8080 可以验证下效果，例如 / 和 /index.html 路由请求数据如下：

$ curl 127.0.0.1:8080/index.html
{
  "paths": [
    "/api",
    "/api/v1",
    "/apis",
    "/apis/",
    ............
    "/apis/apps",
    "/apis/apps/v1",
    ......
    "/apis/batch",
    "/apis/batch/v1",
    ............
    ............
    "/logs",
    "/metrics",
    ............
    "/version"
  ]
}

在 installAPI 过程中，同时用到了 NonGoRestfulMux（非 go-restful 的路由）和 GoRestfulContainer（go-restful 的路由）两种路由的注册方法，都比较的简单。

例如 / 和 /index.html 路由使用 NonGoRestfulMux 注册，实现如下：

// k8s.io/apiserver/pkg/server/routes/index.go

type Index struct{}

func (i Index) Install(pathProvider ListedPathProvider, mux *mux.PathRecorderMux) {
	handler := IndexLister{StatusCode: http.StatusOK, PathProvider: pathProvider}

	mux.UnlistedHandle("/", handler)
	mux.UnlistedHandle("/index.html", handler)
}

type IndexLister struct {
	StatusCode   int
	PathProvider ListedPathProvider
}

func (i IndexLister) ServeHTTP(w http.ResponseWriter, r *http.Request) {
	responsewriters.WriteRawJSON(i.StatusCode, metav1.RootPaths{Paths: i.PathProvider.ListedPaths()}, w)
}

而 /version 路由使用 GoRestfulContainer 注册，实现如下：

// k8s.io/apiserver/pkg/server/routes/version.go

type Version struct {
	Version *version.Info
}

func (v Version) Install(c *restful.Container) {
	if v.Version == nil {
		return
	}

	// 使用 go-restful 的路由注册方法
	versionWS := new(restful.WebService)
	versionWS.Path("/version")
	versionWS.Doc("git code version from which this is built")
	versionWS.Route(
		versionWS.GET("/").To(v.handleVersion).
			Doc("get the code version").
			Operation("getCodeVersion").
			Produces(restful.MIME_JSON).
			Consumes(restful.MIME_JSON).
			Writes(version.Info{}))

	c.Add(versionWS)
}

func (v Version) handleVersion(req *restful.Request, resp *restful.Response) {
	responsewriters.WriteRawJSON(http.StatusOK, *v.Version, resp.ResponseWriter)
}

到这里，几个基本路由注册完成，跳到本回最开始的 kubeAPIServerConfig.Complete().New(delegateAPIServer) 的 New 方法，继续来看后续：

// pkg/controlplane/instance.go #352
func (c completedConfig) New(delegationTarget genericapiserver.DelegationTarget) (*Instance, error) {
	// ...

	// 创建 KubeAPIServer 委托对象（见上回）
	s, err := c.GenericConfig.New("kube-apiserver", delegationTarget)
	if err != nil {
		return nil, err
	}

	// 注册完成了 /、/debug/*、/metrics、/version、/apis 基本路由
	// 后续开始

	// 相同的方法，使用 GoRestfulContainer 注册 /logs 路由
	if c.ExtraConfig.EnableLogsSupport {
		routes.Logs{}.Install(s.Handler.GoRestfulContainer)
	}

	md, err := serviceaccount.NewOpenIDMetadata(
		c.ExtraConfig.ServiceAccountIssuerURL,
		c.ExtraConfig.ServiceAccountJWKSURI,
		c.GenericConfig.ExternalAddress,
		c.ExtraConfig.ServiceAccountPublicKeys,
	)
	if err != nil {
		// ...
	} else {
		// 注册 /openapi 路由
		routes.NewOpenIDMetadataServer(md.ConfigJSON, md.PublicKeysetJSON).
			Install(s.Handler.GoRestfulContainer)
	}

	m := &Instance{
		GenericAPIServer:          s,
		ClusterAuthenticationInfo: c.ExtraConfig.ClusterAuthenticationInfo,
	}

	// 注册 LegacyAPI ，即核心 API ，以 /api 开头的路由在这个方法中注册
	if err := m.InstallLegacyAPI(&c, c.GenericConfig.RESTOptionsGetter); err != nil {
		return nil, err
	}

	// ...

	// 注册以 /apis 开头的路由
	if err := m.InstallAPIs(c.ExtraConfig.APIResourceConfigSource, c.GenericConfig.RESTOptionsGetter, restStorageProviders...); err != nil {
		return nil, err
	}

	// ...
	return m, nil
}

在注册完基本路由后，KubeAPIServer 又继续进行了 /logs 、/openapi 、/api/* 、/apis/* 路由的注册。

继续看 /api/* 路由，跳到 InstallLegacyAPI 方法，主要分成两步，第一步创建 RESTStorage 将后端存储与资源进行绑定（下回分析），第二步才开始进行路由注册：

// pkg/controlplane/instance.go #580

func (m *Instance) InstallLegacyAPI(c *completedConfig, restOptionsGetter generic.RESTOptionsGetter) error {
	// 这里下回分析
	// 主要是为 LegacyAPI 中各个资源创建 RESTStorage
	// 将各种资源和对应的后端存储（etcd）的操作绑定
	legacyRESTStorage, apiGroupInfo, err := legacyRESTStorageProvider.NewLegacyRESTStorage(c.ExtraConfig.APIResourceConfigSource, restOptionsGetter)
	if err != nil {
		return fmt.Errorf("error building core storage: %v", err)
	}
	//...

	// 注册路由
	if err := m.GenericAPIServer.InstallLegacyAPIGroup(genericapiserver.DefaultLegacyAPIPrefix, &apiGroupInfo); err != nil {
		return fmt.Errorf("error in registering group versions: %v", err)
	}
	return nil
}

第二步的路由注册：

// k8s.io/apiserver/pkg/server/genericapiserver.go #815
func (s *GenericAPIServer) InstallLegacyAPIGroup(apiPrefix string, apiGroupInfo *APIGroupInfo) error {
	// ...

	// 跳转到 installAPIResources 看具体实现
	if err := s.installAPIResources(apiPrefix, apiGroupInfo, openAPIModels); err != nil {
		return err
	}

	// ...
	return nil
}

// k8s.io/apiserver/pkg/server/genericapiserver.go #739
func (s *GenericAPIServer) installAPIResources(apiPrefix string, apiGroupInfo *APIGroupInfo, openAPIModels map[string]*spec.Schema) error {
	// ...

	// 遍历获取 API 版本，目前对于 /api 路由只有 v1 一个版本
	for _, groupVersion := range apiGroupInfo.PrioritizedVersions {
		// 根据路由前缀和版本（/api/v1）获取每个路由及其绑定的 RESTStorage 的 ApiGroupVersion 信息
		apiGroupVersion, err := s.getAPIGroupVersion(apiGroupInfo, groupVersion, apiPrefix)
		// 组装好了所有路由及其对应的 RESTStorage 后，再次跳转，开始进行路由注册
		discoveryAPIResources, r, err := apiGroupVersion.InstallREST(s.Handler.GoRestfulContainer)
	}

	// ...

	return nil
}

// k8s.io/apiserver/pkg/server/genericapiserver.go #904
func (s *GenericAPIServer) getAPIGroupVersion(apiGroupInfo *APIGroupInfo, groupVersion schema.GroupVersion, apiPrefix string) (*genericapi.APIGroupVersion, error) {
	// 存储 API 资源的信息
	storage := make(map[string]rest.Storage)

	// groupVersion.Version 这里的值是 v1
	for k, v := range apiGroupInfo.VersionedResourcesStorageMap[groupVersion.Version] {
		// k 是资源（即路由），例如 pods ，需要判断下是否为小写
		if strings.ToLower(k) != k {
			return nil, fmt.Errorf("resource names must be lowercase only, not %q", k)
		}
		// v 是资源对应的 RESTStorage
		// 将 k:v 存储到 storage 中
		storage[k] = v
	}
	version := s.newAPIGroupVersion(apiGroupInfo, groupVersion)
	version.Root = apiPrefix
	version.Storage = storage
	return version, nil
}

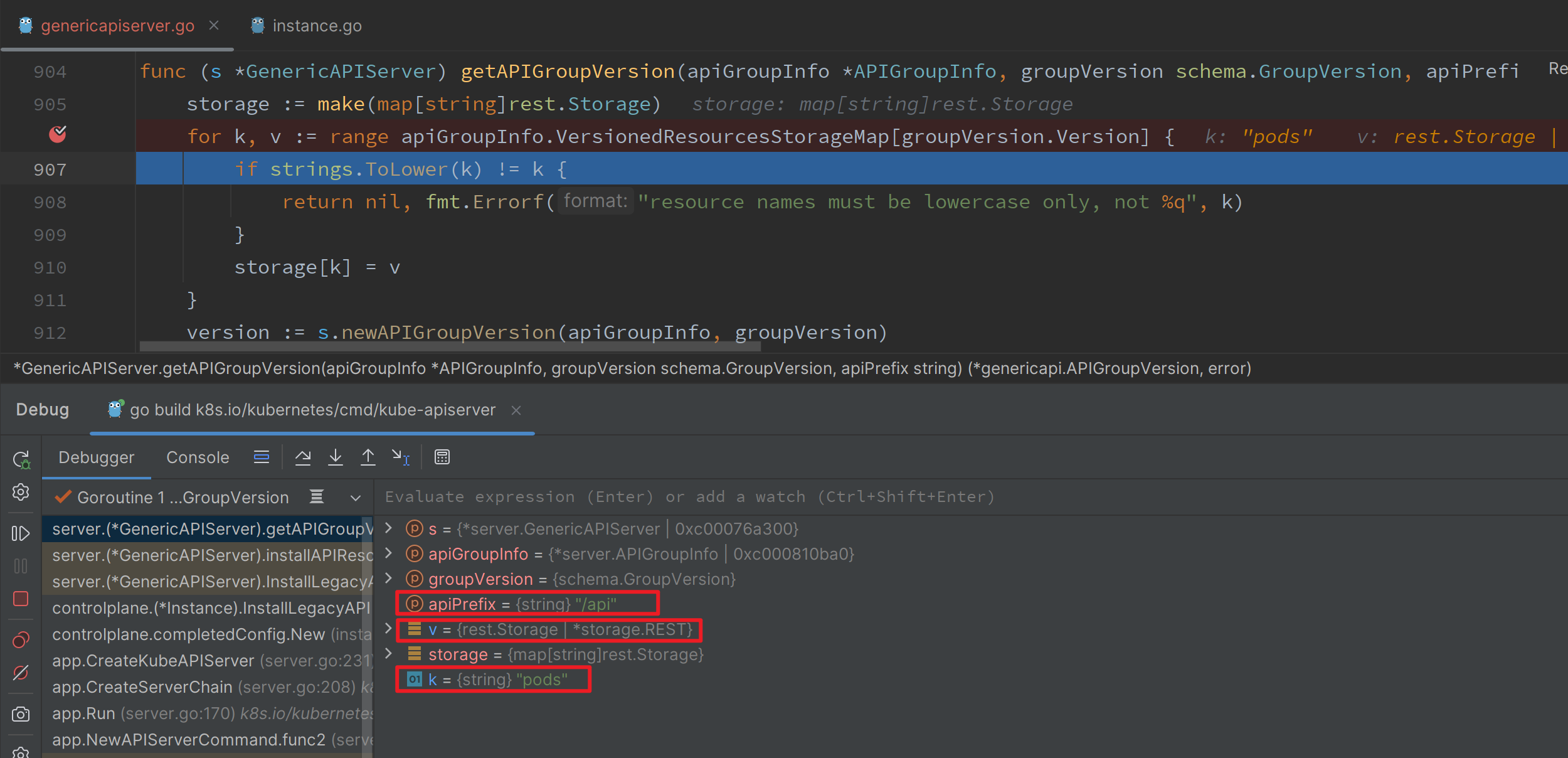

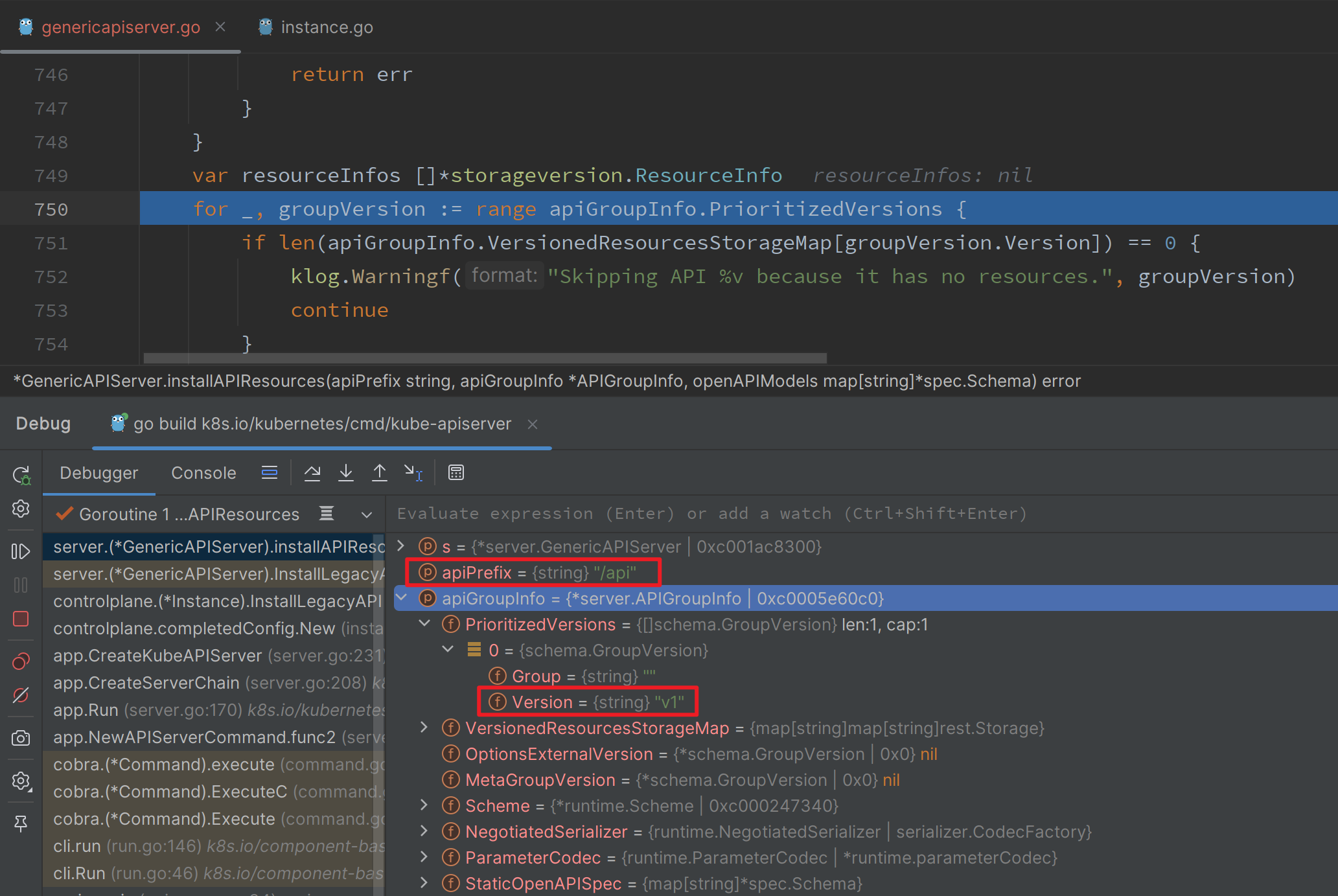

这里可以通过调试来验证：

Untitled

Untitled

继续来到 apiGroupVersion.InstallREST 方法（调用链很深）：

// k8s.io/apiserver/pkg/endpoints/groupversion.go #105
func (g *APIGroupVersion) InstallREST(container *restful.Container) ([]apidiscoveryv2beta1.APIResourceDiscovery, []*storageversion.ResourceInfo, error) {
	prefix := path.Join(g.Root, g.GroupVersion.Group, g.GroupVersion.Version)
	installer := &APIInstaller{
		group:             g,
		prefix:            prefix,
		minRequestTimeout: g.MinRequestTimeout,
	}

	// 继续跳转
	apiResources, resourceInfos, ws, registrationErrors := installer.Install()

	// ...
	return aggregatedDiscoveryResources, removeNonPersistedResources(resourceInfos), utilerrors.NewAggregate(registrationErrors)
}

// k8s.io/apiserver/pkg/endpoints/installer.go #184
func (a *APIInstaller) Install() ([]metav1.APIResource, []*storageversion.ResourceInfo, *restful.WebService, []error) {
	var apiResources []metav1.APIResource
	var resourceInfos []*storageversion.ResourceInfo
	var errors []error
	ws := a.newWebService()

	// 先对路径进行排序，以确保在不同的环境中生成的 Swagger 规范是相同的
	paths := make([]string, len(a.group.Storage))
	var i int = 0
	for path := range a.group.Storage {
		paths[i] = path
		i++
	}
	sort.Strings(paths)

	for _, path := range paths {
		// 继续，快到终点了！
		apiResource, resourceInfo, err := a.registerResourceHandlers(path, a.group.Storage[path], ws)
		// ...
	}
	return apiResources, resourceInfos, ws, errors
}

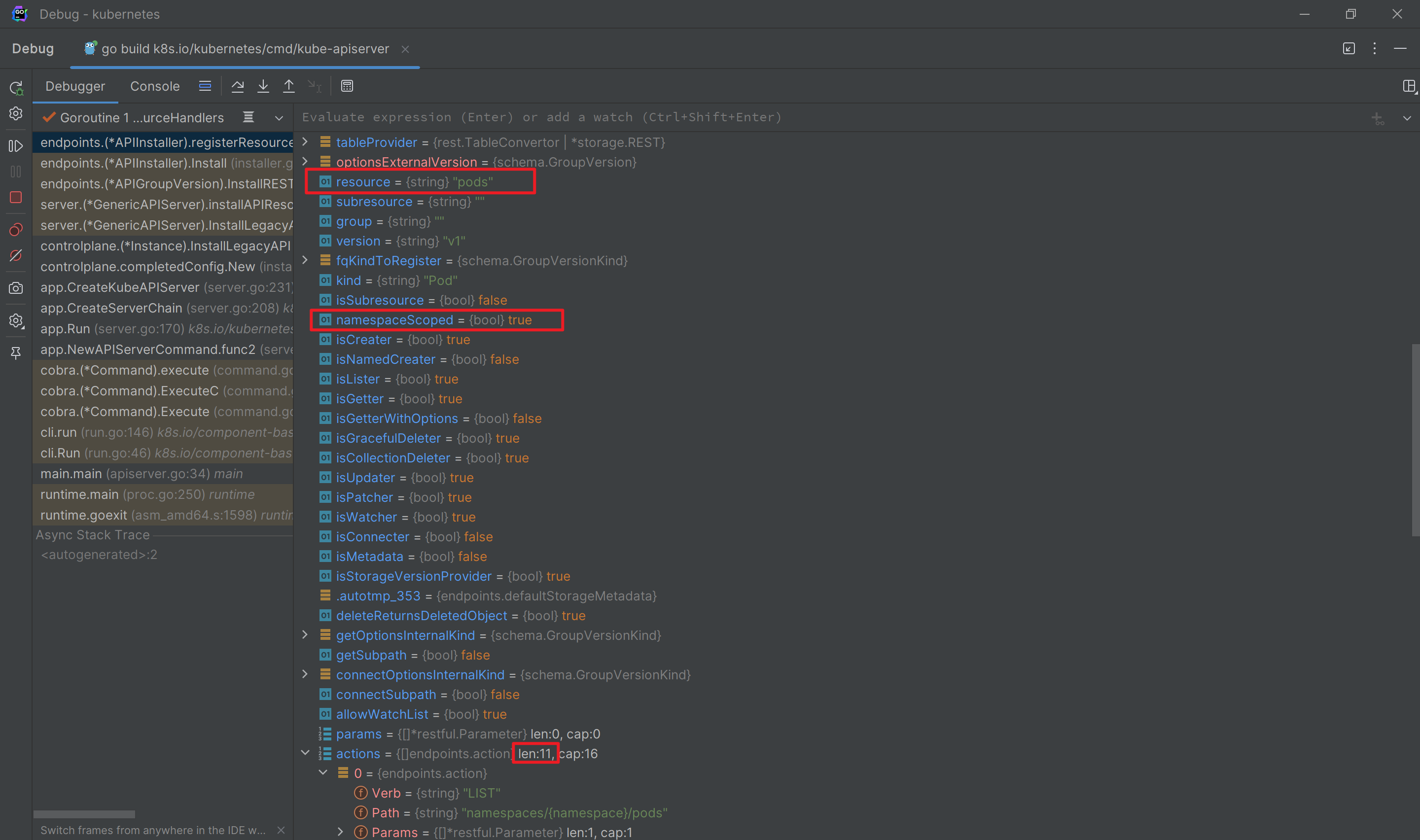

registerResourceHandlers 方法，整整 824 行代码，拆开看，不揪细节。

首先先判断 RESTStorage 支持的 verbs ，然后根据是否支持 namespace 选项来添加对应的 action ：

func (a *APIInstaller) registerResourceHandlers(path string, storage rest.Storage, ws *restful.WebService) (*metav1.APIResource, *storageversion.ResourceInfo, error) {
	// ...
	// 判断 RESTStorage 支持的 verbs
	creater, isCreater := storage.(rest.Creater)
	namedCreater, isNamedCreater := storage.(rest.NamedCreater)
	lister, isLister := storage.(rest.Lister)
	getter, isGetter := storage.(rest.Getter)
	getterWithOptions, isGetterWithOptions := storage.(rest.GetterWithOptions)
	gracefulDeleter, isGracefulDeleter := storage.(rest.GracefulDeleter)
	collectionDeleter, isCollectionDeleter := storage.(rest.CollectionDeleter)
	updater, isUpdater := storage.(rest.Updater)
	patcher, isPatcher := storage.(rest.Patcher)
	watcher, isWatcher := storage.(rest.Watcher)
	connecter, isConnecter := storage.(rest.Connecter)
	storageMeta, isMetadata := storage.(rest.StorageMetadata)
	storageVersionProvider, isStorageVersionProvider := storage.(rest.StorageVersionProvider)
	gvAcceptor, _ := storage.(rest.GroupVersionAcceptor)


	// ...
	// 根据资源是否支持 namespace 选项来添加对应的 action
	switch {
	case !namespaceScoped:
		// 非 namespace 作用域的资源，例如 nodes
		// ...省略
	default:
		// 支持 namespace 作用域的资源，例如 pods
		namespaceParamName := "namespaces"
		// Handler for standard REST verbs (GET, PUT, POST and DELETE).
		namespaceParam := ws.PathParameter("namespace", "object name and auth scope, such as for teams and projects").DataType("string")
		// 支持指定 namespace
		// 例如 /api/v1/pods 等同于 /api/v1/namespaces/default/pods
		namespacedPath := namespaceParamName + "/{namespace}/" + resource
		namespaceParams := []*restful.Parameter{namespaceParam}

		resourcePath := namespacedPath
		resourceParams := namespaceParams
		itemPath := namespacedPath + "/{name}"
		nameParams := append(namespaceParams, nameParam)
		proxyParams := append(nameParams, pathParam)
		itemPathSuffix := ""
		if isSubresource {
			itemPathSuffix = "/" + subresource
			itemPath = itemPath + itemPathSuffix
			resourcePath = itemPath
			resourceParams = nameParams
		}
		apiResource.Name = path
		apiResource.Namespaced = true
		apiResource.Kind = resourceKind
		namer := handlers.ContextBasedNaming{
			Namer:         a.group.Namer,
			ClusterScoped: false,
		}

		// 结合 RESTStorage 支持的 verbs，添加 action
		actions = appendIf(actions, action{"LIST", resourcePath, resourceParams, namer, false}, isLister)
		actions = appendIf(actions, action{"POST", resourcePath, resourceParams, namer, false}, isCreater)
		actions = appendIf(actions, action{"DELETECOLLECTION", resourcePath, resourceParams, namer, false}, isCollectionDeleter)
		// DEPRECATED in 1.11
		actions = appendIf(actions, action{"WATCHLIST", "watch/" + resourcePath, resourceParams, namer, false}, allowWatchList)

		actions = appendIf(actions, action{"GET", itemPath, nameParams, namer, false}, isGetter)
		if getSubpath {
			actions = appendIf(actions, action{"GET", itemPath + "/{path:*}", proxyParams, namer, false}, isGetter)
		}
		actions = appendIf(actions, action{"PUT", itemPath, nameParams, namer, false}, isUpdater)
		actions = appendIf(actions, action{"PATCH", itemPath, nameParams, namer, false}, isPatcher)
		actions = appendIf(actions, action{"DELETE", itemPath, nameParams, namer, false}, isGracefulDeleter)
		// DEPRECATED in 1.11
		actions = appendIf(actions, action{"WATCH", "watch/" + itemPath, nameParams, namer, false}, isWatcher)
		actions = appendIf(actions, action{"CONNECT", itemPath, nameParams, namer, false}, isConnecter)
		actions = appendIf(actions, action{"CONNECT", itemPath + "/{path:*}", proxyParams, namer, false}, isConnecter && connectSubpath)

		// list or post across namespace.
		// For ex: LIST all pods in all namespaces by sending a LIST request at /api/apiVersion/pods.
		// TODO: more strongly type whether a resource allows these actions on "all namespaces" (bulk delete)
		if !isSubresource {
			actions = appendIf(actions, action{"LIST", resource, params, namer, true}, isLister)
			// DEPRECATED in 1.11
			actions = appendIf(actions, action{"WATCHLIST", "watch/" + resource, params, namer, true}, allowWatchList)
		}
	}

	// ...
	return &apiResource, resourceInfo, nil
}

以 pods 资源为例，就支持了 11 种 action ：

Untitled

最后就可以根据每个 action 来添加对应的 handler 并注册到路由中，以 GET 为例：

func (a *APIInstaller) registerResourceHandlers(path string, storage rest.Storage, ws *restful.WebService) (*metav1.APIResource, *storageversion.ResourceInfo, error) {
	// ...

	for _, action := range actions {

		switch action.Verb {
		case "GET": // Get a resource.

			// 初始化 handler
			var handler restful.RouteFunction
			if isGetterWithOptions {
				handler = restfulGetResourceWithOptions(getterWithOptions, reqScope, isSubresource)
			} else {
				handler = restfulGetResource(getter, reqScope)
			}

			if needOverride {
				// need change the reported verb
				handler = metrics.InstrumentRouteFunc(verbOverrider.OverrideMetricsVerb(action.Verb), group, version, resource, subresource, requestScope, metrics.APIServerComponent, deprecated, removedRelease, handler)
			} else {
				handler = metrics.InstrumentRouteFunc(action.Verb, group, version, resource, subresource, requestScope, metrics.APIServerComponent, deprecated, removedRelease, handler)
			}
			handler = utilwarning.AddWarningsHandler(handler, warnings)

			doc := "read the specified " + kind
			if isSubresource {
				doc = "read " + subresource + " of the specified " + kind
			}

			// 熟悉的方法，使用 go-restful 的路由注册方法
			route := ws.GET(action.Path).To(handler).
				Doc(doc).
				Param(ws.QueryParameter("pretty", "If 'true', then the output is pretty printed.")).
				Operation("read"+namespaced+kind+strings.Title(subresource)+operationSuffix).
				Produces(append(storageMeta.ProducesMIMETypes(action.Verb), mediaTypes...)...).
				Returns(http.StatusOK, "OK", producedObject).
				Writes(producedObject)
			if isGetterWithOptions {
				if err := AddObjectParams(ws, route, versionedGetOptions); err != nil {
					return nil, nil, err
				}
			}
			addParams(route, action.Params)
			routes = append(routes, route)
		case "LIST": // List all resources of a kind.
			// ...
		case "PUT": // Update a resource.
			// ...
		case "PATCH": // Partially update a resource
			// ...
		case "POST": // Create a resource.
			// ...
		case "DELETE": // Delete a resource.
			// ...
		case "DELETECOLLECTION":
			// ...
		// deprecated in 1.11
		case "WATCH": // Watch a resource.
			// ...
		// deprecated in 1.11
		case "WATCHLIST": // Watch all resources of a kind.
			// ...
		case "CONNECT":
			// ...
		default:
			return nil, nil, fmt.Errorf("unrecognized action verb: %s", action.Verb)
		}
		for _, route := range routes {
			route.Metadata(ROUTE_META_GVK, metav1.GroupVersionKind{
				Group:   reqScope.Kind.Group,
				Version: reqScope.Kind.Version,
				Kind:    reqScope.Kind.Kind,
			})
			route.Metadata(ROUTE_META_ACTION, strings.ToLower(action.Verb))

			// 使用 go-restful 的路由注册方法
			ws.Route(route)
		}
		// Note: update GetAuthorizerAttributes() when adding a custom handler.
	}

	// ...
	return &apiResource, resourceInfo, nil
}

同样可以进行调试，以 pods 资源为例：

# 等价于 127.0.0.1:8080/api/v1/namespaces/default/pods
$ curl http://127.0.0.1:8080/api/v1/pods
{
  "kind": "PodList",
  "apiVersion": "v1",
  "metadata": {
    "resourceVersion": "5210"
  },
  "items": [
    {
      "metadata": {
        "name": "nginx",
        "namespace": "default",
        "uid": "65d17c9d-5dc6-437f-81e2-6d31e476417a",
        "resourceVersion": "1874",
        "creationTimestamp": "2023-06-04T08:56:21Z",
        "annotations": {
          "kubectl.kubernetes.io/last-applied-configuration": "{\"apiVersion\":\"v1\",\"kind\":\"Pod\",\"metadata\":{\"annotations\":{},\"name\":\"nginx\",\"namespace\":\"default\"},\"spec\":{\"containers\":[{\"image\":\"nginx:1.14.2\",\"name\":\"nginx\",\"ports\":[{\"containerPort\":80}]}]}}\n"
        },
        "managedFields": [...]
      },
      "spec": {
        "volumes": [...],
        "containers": [...],
        "restartPolicy": "Always",
        "terminationGracePeriodSeconds": 30,
        "dnsPolicy": "ClusterFirst",
        "serviceAccountName": "default",
        "serviceAccount": "default",
        "securityContext": {},
        "schedulerName": "default-scheduler",
        "tolerations": [...],
        "priority": 0,
        "enableServiceLinks": true,
        "preemptionPolicy": "PreemptLowerPriority"
      },
      "status": {
        "phase": "Pending",
        "qosClass": "BestEffort"
      }
    }
  ]
}

到这里，所有路由注册就完成了。这里就不展开 handler 的初始化了。

至于最后的 /apis/* 路由的注册，即 InstallAPIs 方法，其主要流程和 InstallLegacyAPI 方法是一致的，也不再赘述了。

本回先到这里，下一回再讲解 RESTStorage 的创建过程。

微信公众号

更多内容请关注微信公众号：gopher云原生

02. apiserver 的 HTTP Server 的初始化04. KubeAPIServer 的存储接口实现
